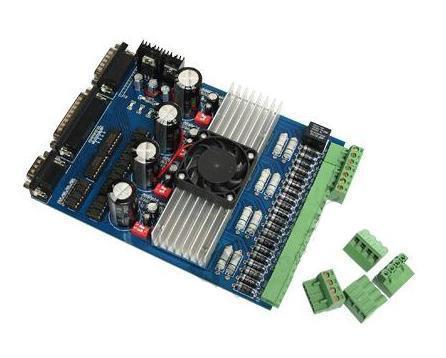

New 4 Axis Stepper Motor Driver Board TA8435H Controller Only simple English Manual comes with this driver board, so you should know electronics if you want to purchase it, thank you ! The new design for the T8435: the 4 axis T8435 stepper motor driver . In adaption of the prono position 8435 chip , we install the larger thermal sink in the bottom, and adapt the FR307 heavy current diode. The new design of the wire-connection and the pin-insert, this two-way input design makes the connection more convenient.The semi-flow uses the 555 chip. * Toshiba TA8435H chip - maximum 2.5A drive current !Click here to down load TA8435H Data sheet * Chip 555 adapts the SOP( SURFACE MOUNT) * In application of the SMT solder-reflow technic. * Add the 24V and 5V indication LED light * Use the DCDC as the isolation of the front and the end power supplys, in order to protect the parallel ports * The manual control connector and the limit connector use the DB15 and DB9 connection port support the relay extension * Please connect the power supply to the power switch of 12-24 V, 5A * Also we have suitable power supply for selling, please feel free to contact us if you have any demands ! * The power output of 12 V shall be applied to the radiator fan of 12V. * The interface of driver shall be connected with 2-phase, 4/6 wires stepper motor within 2A current * This board can work with both unipolar and bipolarstepper motors * Support most parallel softwares KCAM4, MACH3 etc. * Power supply: 12V-24V DC, 5A * Output current: peak value 2.5A per phase (2A recommended) * Resolution setup: full step, 1/2, 1/4, 1/8 * Dimension: 18(L) x 13(W) x 3.6(H) cm * For more information, pls click here to Download User Manual * 1 x Software CD (Mach3 + English User Manual) (4 axis stepper motor driver board TA8435H controller was posted and is owned by: Cecilia Hammond) |
