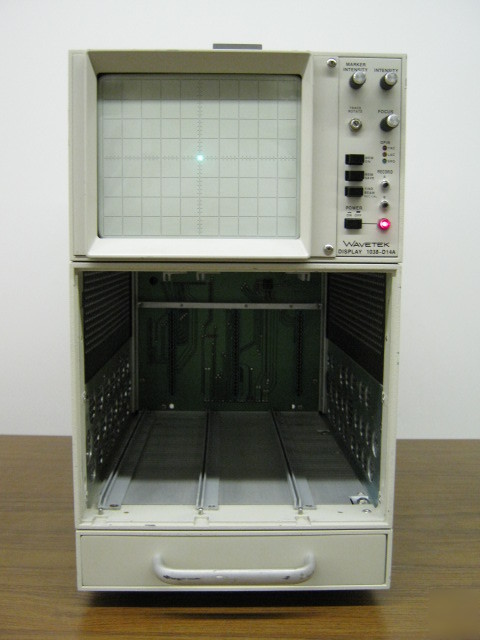

The 1038-D14A Mainframe (does not include plug-in/s) has the capability of displaying two independent measurements (return loss and insertion loss/gain) simultaneously, using a refresh memory to provide a clear, smooth, flicker-free CRT display. The display has a horizontal resolution of 512 points, and a vertical resolution of 1024 points. If a real-time display is required, the refresh memory can be turned off. The unit contains internal circuits that, when interconnected to almost any X-Y recorder through BNC connectors on the rear of the mainframe, will provide signals to both calibrate and drive the recorder. Please note: Mainframe only, plug-ins are required for operation, front panel cover is not included. (Wavetek 1038D14A mainframe was posted and is owned by: Eve Parker) |
