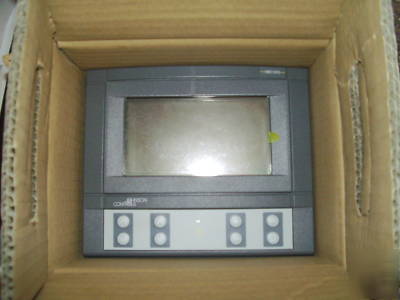

The DX LCD Display Terminal is a user interface for the DX Series controllers. The display can function as a simple adjustment and indication unit, or it can be used to perform more complex workstation tasks. It is designed for the maintenance person who needs a straightforward way to monitor and adjust controller points. The display can be a portable, hand-held unit for more than one controller, or permanently mounted in a panel or on the wall as an integral part of a single controller. The DX LCD Display provides diagnostic views of the system controlled by the DX controller. For example, it can show mixed air, discharge air, and zone temperature at the same time. It can also show setpoints, actual temperatures, and controller outputs on a single screen.The DX LCD Display stores up to eight separate display configurations. A configuration specifies up to 96 points(items) of the DX controller that the DX LCD Display can display and monitor. Each unique configuration includes 12 trend definition variables and a graphical home page. When an alarm condition is detected, an audible alarm is sounded and a Light-Emitting Diode (LED) flashes. The maintenance person can acknowledge and stop the audible alarm by pressing a key. The Alarm Summary provides an overview of all points currently in alarm state. (New brand johnson controls dt-9100-8104 dx lcd display was posted and is owned by: Natasha Cohen) |
natasha.cohen@chicagopartsnetwork.com (Natasha Cohen) for more information.
