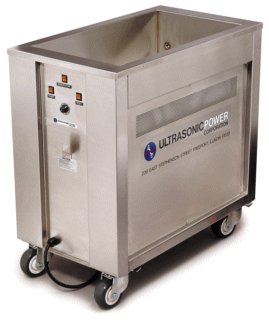

- Internal dimensions of 24 inches (FtoB) x 54 inches (LtoR) x 24 inches deep - Overall dimensions of 30 inches (FtoB) x 67 inches (LtoR) x 47 inches high - Three (3) 40 kHz, 1000 Watt, Model 5300 ultrasonic generators (3000W avg /6000W pk total) - High efficiency generator circuitry, meets all FCC requirements - Sweep circuitry (adjustable from 300 Hz to 1000 Hz) - 3000 Watts average power (6000 Watts peak) - Patented constant power circuit design monitors power output continuously adjusting input power for controlled consistency. - 36 Vibra-bar transducers, 72 piezoelectric (PZT) stacks mounted to tank bottom - Simultaneous Multi-Frequency ultrasonic cleaning power - Adjustable power intensity control on the control panel - 4000 Watts of heat controlled by an adjustable thermostat (85-195 F) - Heavy duty, 12 gauge, 316L stainless steel tank, double TIG welded for durability - Double wall all stainless steel construction with four 5 inch industrial locking swivel castors - Power requirement 240 VAC, 50/60 Hz, single phase, 30A - 1.5 drain, heavy duty ball valve, sloped bottom for easy draining - Provides the optimum environment for precision cleaning with extended service life. - Constructed of cavitation resistant, bright annealed 316L stainless steel. - Welded inside and out for long-term stability and sturdy performance. - Double wall constuction for maximum sturdiness. - Sloped bottoms for easy draining. This powerful, state-of-the-art generator when applied with "Vibra-Bar" transducers, the 5300 delivers "Simultaneous Multi-Frequency" for both an electrical sweep of the base frequency, and a mechanical multi-frequency movement of the "Vibra-Bar" transducers. Producing uniform cavitation with aqueous as well as semi-aqueous material, this combination provides the most effective cleaning action available in the industry. A sweep frequency circuit which operates at 40 kHz and sweeps 2 kHz above and below the base frequency. The speed of sweep can be adjusted from the range of 100 to 1000 times per second depending on the desire of the end user and the fluid that will be utilized in the tank. The 5300 has the ability to perform in a variety of aqueous and semi-aqueous chemistries. The 5300 has constant output power with less than 5% change in spite of load and/or temperature variations of the liquid volume and product mass being cleaned. And the 5300 solid state circuitry is protected from shorts and opens on the load side. Authorized Ultrasonic Power Corporation Distributor (New 135 gallon large portable ultrasonic power cleaner was posted and is owned by: Ben Snider) |
Ben.snider@chicagopartsnetwork.com (Ben Snider) for more information.
