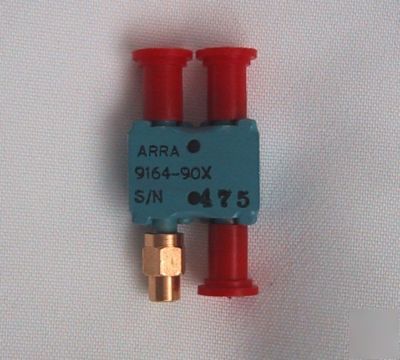

90 Deg Hybrid / Pwr Splitter, Arra Inc, Model 9164-90X, 12.4-18 GHz * 90 Degree Hybrid (also works as -3 db Power Splitter) * Omni Spectra 50 ohm load included on Isloated Port gold plated * Manufacturers data shown below for reference: * Frequency Range: 12.4 18.0 GHz * * Power Balance (Between -3dB Output Ports): 0.5 dB * Allowable RF Power: 100 W(avg) 5KW(peak) ** * Insertion loss : 0.6 dB max * http:// /coaxial/coupler/minhy90.htm * Frequency Range*: slightly wider 12.0-18.0 GHz shown at Arra website * Allowable RF Power**: 40W(avg) 1KW(max) shown at Arra website * Cosmetics: New - 2 micro fine small scratches - can't see without magnify glass * Tests/Results: New and no mechanical damage General Condition and Performance: * Passive Microwave electrical component performance is mostly based on internal mechanical component interaction. * Mechanically undamaged components will normally operate properly. * Microwave electrical testing is limited to equipment on hand and is commonly done only at one in-band frequency or not at all, per description. If no information is provided, assume no testing was performed. * DC-200MHz tests depend on equipment I have available and is only performed as described * Some reduction in performance might be expected with wear/tear and age on connectors or mating surfaces. * I will answer any questions to the best of my ability. * Items are As-Pictured, As Described, what you see is what you get. * **Sales are Final**, no warranty is given, expressed or implied. * I will not sell any item that tests or I believe is defective, without clearly stating defects in description. (Arra 90 degree hybrid 12-18 ghz sma model 9164-90X was posted and is owned by: Monica Williams) |
Monica-Williams@chicagopartsnetwork.com (Monica Williams) for more information.
