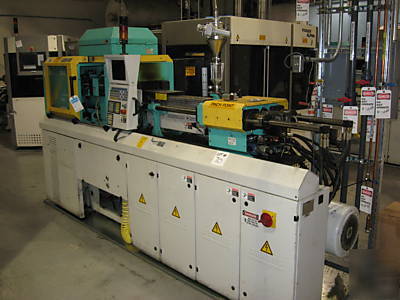

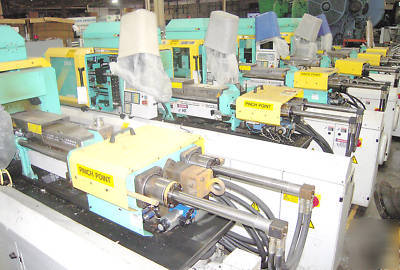

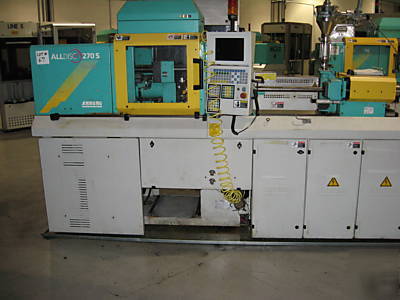

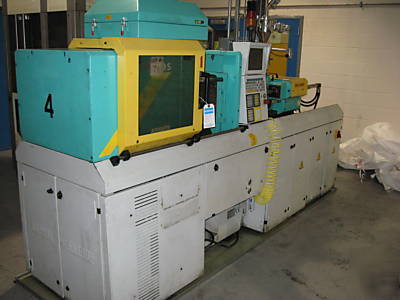

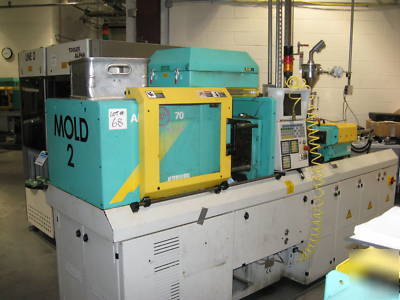

Arburg Allrounder 28 Ton Injection Molding Machines, (7) Available Hour readings are not available (see table below for model, s/n and year manufactured. Manuals and software available for each machine. Opening Force / Increased Opening Force (kN): 25/125 Max Clamping Platen Daylight (mm): 575 Tie Bar Daylight (mm): 320 x 320 Mould Clamping Platens (b x h) (mm): 498 x 498 Max Movable Mold Half Weight (Kg): 400 Hydraulic Pump Capacity (kW): 15 Total Connected Load (kW): 20.4 Color: Plastic Coated Structure Light Gray / mint Green Safety Standard According to: DIN EN 60204 Effective Screw Length (L/D): 20 Max Theoretical Screw Volume (cm3): 78 Max Injected Part Weight (g/PS): 65 Max Injection Pressure (bar): 2200 Max Back Pressure Positive/Negative (bar): 350/200 Max Nozzle Contact Force (kN): 50 Installed Cylinder Heating (W): 4 x 1200 Installed Nozzle Heating (W): 600 Max Horizontal Position (mm): 120 $7,500.00 Each Sold Separately 28 Ton, 30mm barrel, 400mmx400mm platen, 270mm between tie bars, 120-235mm mold height, 380 v, 3 ph, 60 hz (Arburg allrounder 28 ton injection molding machine was posted and is owned by: Elsa Ewing) |
Elsa.Ewing@chicagopartsnetwork.com (Elsa Ewing) for more information.
