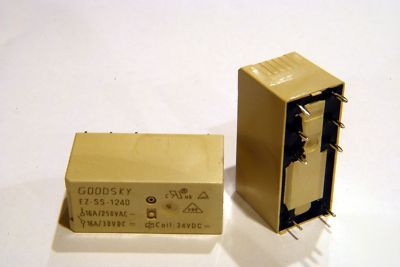

Up for sale 1 pcs. of brand new, 24V, 16.7mA, DC coil, 16A Relay, Producer: Good Sky Electric Co., Ltd.,EZ_SS_124D . 1. Relays are designed for switching capacity by 16A to comply with industrial control system use. 2. Slim type and low profile (29.0 x 12.6 x 15.6) mm. is developed to provide end users with more flexibility in PC Board design. 4. Proper insulation distance will has a 5000VAC dielectric strength between contact and coil. 5. Complete protective construction from dust and soldering flux is designed. Cooking appliance, audio equipment, domestic appliance and controlling equipment, etc. Nominal Voltage (VDC): 24.00V Coil Resistance (ohms) (+/- 10%): 1,440ohms Power Consumption (W): 0.40W Nominal Current (mA) (+/- 10%): 16.70mA Pull In Voltage (VDC): 19.20V Drop Out Voltage (VDC): 1.20V Max. Allowable Voltage (VDC): 31.20V Contact Resistance: 100 m Max. @1A,6VDC Dielectric Strength - between coil & contact: 5,000VAC at 50/60 Hz for one minute. Dielectric Strength - between contact: 1,000VAC at 50/60 Hz for one minute. Insulation Resistance: 100M Min. at 500VDC Operating Ambient Temperature: -40oC ~ +85oC Vibration Resistance: 10G (10~55Hz) (Dual amplitude:1.5mm) Shock Endurance: 1,000 m/S2 Min. Shock Error Operation: 100 m/S2 Min. Life Expectancy Mechanically: 10@7 Operations at No load condition. Life Expectancy Electrically: 10@5 Operations at Rated Resistive Load. Rated Carrying Current: 16A at 30VDC, 16A at 250VAC. Max. Allowable Voltage: AC 250V, DC 110V. Max. Current (continual): 0.5A 1-5 Coil, 2&6-3&7 Normally Closed, 3&7-4&8 Normally Open (24V 16.7MA dc 16A one pole relay was posted and is owned by: Stacey Weeks) |
