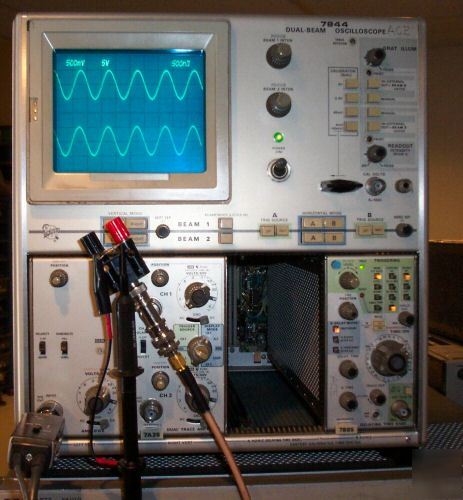

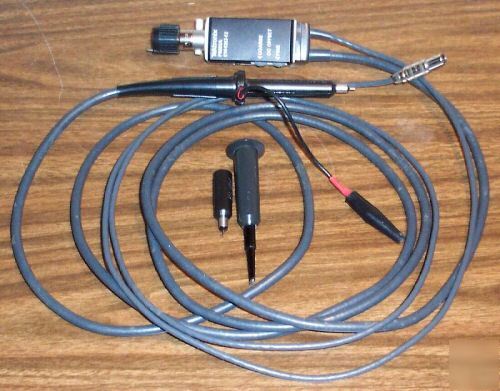

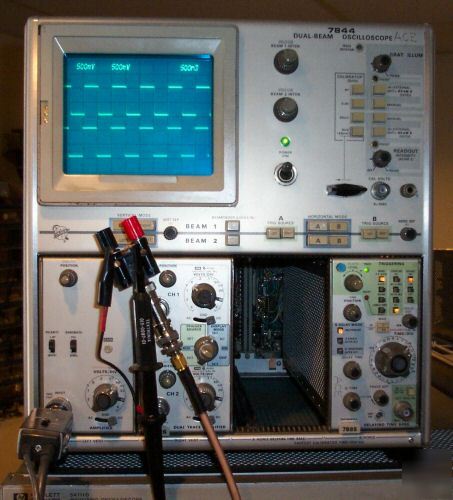

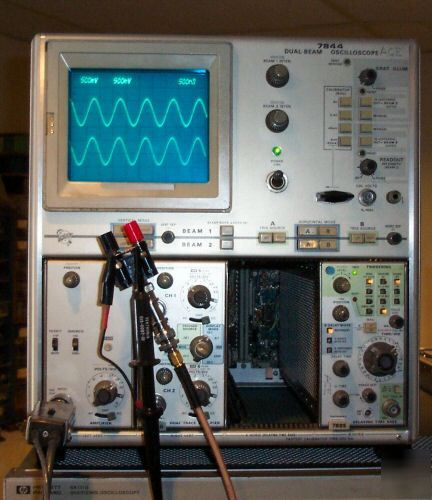

I have recently upgraded some of my test equipment and will be selling various pieces of 7000 series compatible probes, plug ins, and mainframes over the next few months. This probe was used with the 7844 shown in the pictures and is in working condition. It did not get a lot of use here and I no longer have a need for it as my new scope has a TEKPROBE interface and no power jack for the P6202A. The pictures show the probe working with a 1V P-P 1MHz signal on the 7844 scope frame. The bottom trace is the raw signal and the top trace is through the probe. The scope knows that the probe is 10X and adjusts the readout accordingly. It does not adjust for the 10X adapter though. One pic is of a 1MHz square wave without the 10X adapter and the other two are 1MHz sine waves with and without the 10X adapter. Email for full size pics if needed. The P6202A is powered directly from the accessory power jack on back of the 7000 series oscilloscopes. The probe's BNC connection can be set for use with a 50 ohm input plug in or can provide the 50 ohm termination for a 1meg input plugin (pictures are with the 50 ohm termination selected). A DC offset control is also provided on the side of the control box at the BNC connector. The specs for the probe are listed below: 10X/Optional 100X with 10X adapter Variable DC Offset, up to ±200 V Selectable 50 Ohm, Termination for Use with 50 Ohm or 1 megaohm Inputs Cosmetically this probe is in good condition with all tips intact. Some of the silkscreen on the control box is rubbed away but the writing is still understandable.. There are no accessories with the probes other than what is shown in the first picture (that shows only the probe and parts). The 7844 scope frame, plugins, and cables are not included. I will include a PDF copy of the manual on CDROM. (Tektronix P6202A 500MHZ active fet probe was posted and is owned by: Genevieve Navarro) |
G.Navarro@chicagopartsnetwork.com (Genevieve Navarro) for more information.
