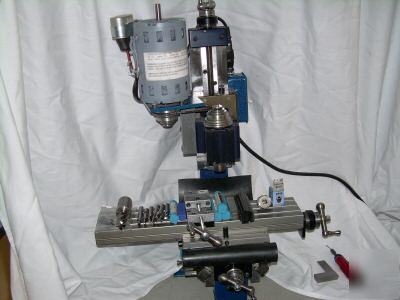

i got this mill in december of 2006 and used it a few times in the past months works great has lots of extras it is a ER model so you can use the ER adaptor to fit larger endmills comes 1/2 endmill adaptor, 3/16 ER coupling 3/8 ER coupler as well as several endmills, dovetail tool, rounding tool, edge finder, a set of parellels, square vise and deburring tool im moving and have no use for the mill anymore X-Axis Table with tapered Gib and Y-axis with square Steel ways Z-Axis Slide with tapered Gib and Steel Box Ways The Micro Mill is a very rigid and precise machine that uses some of the most advanced techniques compared to its competitors. The Y-axis and Z-axis are supported on 2 1/2 inch square steel tubing to provide a very solid feel. The leadscrews are all 1/2-20 unlike a lot of machines of similar size that use 1/4 inch leadscrews. TAIG prefers to provide added mechanical features to allow the mill to be more useful without raising the price. Being an aerospace manufacturer for over 18 years our machinists know the importance of table back-lash compensation and full gib adjustments for wear as employed in the manufacture of the Micro Mill. Basically, the Micro Mill was designed by machinists and built by machinists. Overall working accuracy should exceed .0005 in. All machines are sold with a 14 day refund and a full 2 year factory warranty on all Mill components and accessories. The Micro Mill has effortless, chatterless, table and millhead movement due to the unique design of oversized gibs, ground steel ways, and a massive carriage assembly.The steel bed/vertical mill head support provides a very rigid Z-axis and makes the Micro Mill ready for CNC upgrade if you desire. Our small Mill is really a scaled down version of a big Mill with manual operation. This is the machine you don't have to baby. The Micro Mill is a rugged precision instrument that has plenty of rigidity. Its machined, ground and stabilized steel bed has a life-time ball bearing spindle, coupled with a six speed positive vee belt drive. Spindle speeds in geometric progression from 525-5200 RPM (CR version 1000 - 10000 rpm) provide the power to "HOG" 1/8 inch cuts in mild steel or the speed and precision to "dust" a few tenths (compare that to other mills of similar size on the market, you can't!). Other big Mill features include large .001 inch graduations on friction adjustable micrometer dials for the X,Y,& Z axis. Adjustable gibs provide full compensation for X,Y & Z axis wear. The spindle head column can rotate from 0 to 180 degrees to provide for special machining tasks. All this adds up to a BEST VALUE in small Mills. * Height 21-3/8 in (manual) 26-3/8 in (CNC) * Width 17 in (manual) 22 in (CNC) * Depth 16-3/4 in (manual) 21 in (CNC) * Weight 65 lbs (manual) 85 lbs (CNC) * Maximum bearing runout 0.0004 in. * 1/2"-20 leadscrews on X,Y,& Z * All lead screw drives have friction adjustable micrometer dials in .001 inch increments * Pulley type std. 5/8 in. bore multi-step vee belt. * Construction - Steel, hard anodized aluminum on all moving components, adjustable brass gibs, and precision ground steel ways hand lapped for long life and accuracy. * Travel in X axis 9.5 in. (Model 2018) * Travel in X axis 12 in. (Model 2019) * Table dimensions 3 1/2 x 15 1/2 inches (Model 2018) * Table dimensions 3 1/2 x 18.4 inches (Model 2019) * Maximum Z-distance to table 9.0 in * 6 spindle speeds 525-5200 RPM * 6 spindle speeds 1000-10000 RPM (CR mill) * Z axis column rotation up to 180 degrees * Spindle head rotation 90 degrees * Sealed precision ball bearing * Bearing OD 1.5748 in., ID 0.6692 in. * Spindle nose 3/4 in. - 16 (3/4 in. SAE) * Spindle ID taper 15 deg (30 deg included) * Max. collet diameter 9/32 in. * Ball Bearings in all leadscrew bearing blocks (Taig mill w/ extras was posted and is owned by: Frances Newton) |
f.newton@chicagopartsnetwork.com (Frances Newton) for more information.
