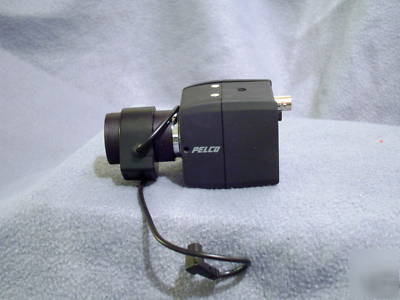

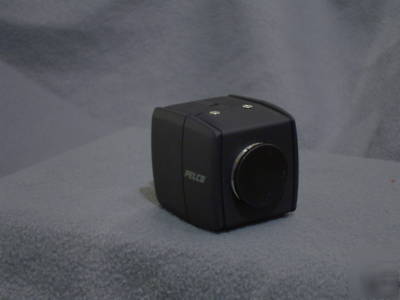

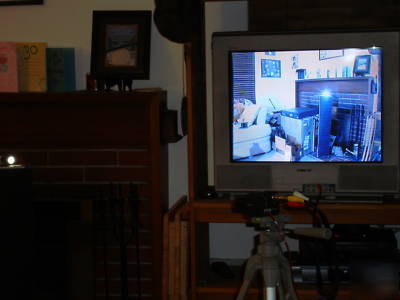

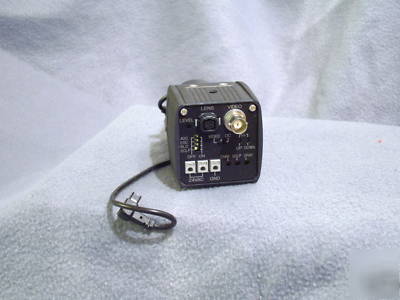

Camera uses Eclipse function to blind bright spots and thus keep iris in level. CCC1370H-2 Series Digital CCD Color Camera 1/3-INCH, HIGH RESOLUTION, 470 TVL (NTSC/PAL), COMPACT CS Lens Mount (C-Mount Lenses Require Optional Adapter) 24 VAC Power with Line Lock (NTSC) 24 VAC Power with Line Lock or 12 VDC with Internal Horizontal Resolution of 470 TV Lines For Use with DC-Controlled and Video-Drive Auto Iris Lenses or (LENS NOT SUPPLIED WITH CAMERA) The CCC1370H-2 is Pelco s smallest digital color CCD camera. The compact camera s high resolution, 1/3-inch imager and high-density image sensor ensure a sharp and clear picture over a wide range of The CCC1370H-2 s extensive features create top quality picture output in various lighting environments. The camera adjusts automatically to light changes when the automatic gain control is used with a fixed or manual iris lens. The analog eclipser function (NTSC model only) allows the auto-iris lens to create clear images in a dark area with a strongly backlit background. Backlight compensation adjusts the picture to prevent objects from appearing extremely dark due to a The CCC1370H-2 integrates other fine-tuning functions such as automatic sensitivity adjustment, real-time auto white balance, and auto iris lens output. The CCC1370H-2 has a standard CS lens mount and can be used with fixed, manual, or auto iris (DC or video drive controlled) lenses. The iris is controlled through a standard four-pin square connector that is included on all Pelco auto iris lenses. The CCC1370H-2 has a quick-connect power connection, BNC video connector, and a standard 1/4-20 screw for top or bottom mounting. The camera is quick and easy to install and is ideal for use with DF5, DF8A, EH100, EH3508 and EH2508 enclosures. The camera is also featured in Pelco s 5-inch (12.7 cm) DomePak line of discreet, low cost ImagePak , fixed camera/dome packages. CCD Sensor 1/3-inch interline transfer CCC1370H-2 768H x 494V (approx. 380K) CCC1370H-2X 752H x 582V (approx. 440K) Sensing Area 3/16 x 1/8-inch (4.7 mm x 3.5 mm) CCC1370H-2X AC line lock/DC internal Horizontal Resolution 470 TV lines Iris Control Electronic/passive Minimum Illumination 1.0 lux @ 50 IRE, f1.2, 75% highlight 0.6 lux @ 35 IRE, f1.2, 75% highlight Signal-to-Noise Ratio >48 dB (AGC off) Vertical Phase Adjustable 90 Automatic Gain Control Selectable Backlight Compensation Selectable CCC1370H-2 525 lines, 2:1 interlace CCC1370H-2X 625 lines, 2:1 interlace Auto Iris Lens Type DC/video control CCC1370H-2X: 24 VAC, 50 Hz/12 VDC Power Connector 3-pin terminal strip, push-in type Lens Jack 4-pin connector (miniature square) Camera Mount 1/4-20 UNC, top and bottom of camera Operating Temperature 14 F to 122 F (-10 C to 50 C) Storage Temperature -40 to 140 F (-40 to 60 C) Humidity 20 to 80% (non-condensing) Weight (without lens) 0.40 lb (0.20 kg) CCC1370H-2 1/3-inch, high resolution, color CCD camera, 24 VAC, 60 Hz, (Pelco CCC1370H-2 high res compact eclipse function was posted and is owned by: Lauren Schultz) |
Lauren-Schultz@chicagopartsnetwork.com (Lauren Schultz) for more information.
