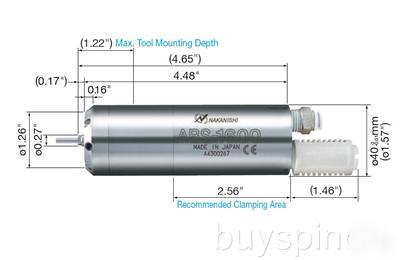

Nsk Nakanishi Air Bearing Spindle ABS-1600 1.57" AIR BEARING SPINDLE ABS-1600 160,000 min-1(rpm) O.D. 1.57"( 40 mm) Ideal for extremely high precision, small diameter machining applications. Air bearings use compressed air blown into a small gap between the spindle and the bearing surface. The spindle floats on an even cushion of compressed air. This non-contact type of bearing means the spindle has a very long service life because of low friction and wear ; it also means that the spindle generates almost no heat or vibration. The spindle and bearing are finished with a very high-accuracy process to ensure extremely low vibration and very high rotating accuracy. Standard Equipment & Accessories ABS-1600 Air Bearing Spindle Collet 1/8" (CH6-3.175) : 1 pc. Wrench (7 x 5.1) : 1 pc. Silencer (K-209) Intake Air Hose (K-215) : 6 mm x 6 ft, 1 pc. Intake Air Hose (K-254) : 6 mm x 6 ft, 1 pc. Bar Wrench (K-212) : 1 pc. Allen Wrench (2.5 mm). The use of an air bearing and high precision collet makes this spindle perfect for ultra-precision machining applications. The air bearing mechanism means this spindle produces extremely low vibration or heat. Proper Air Pressure for Air Turbine 42~71PSI Air Consumption for Air Turbine 3.53CFM (71PSI) Proper Air Pressure for Air Bearing 71PSI Air Consumption for Air Bearing 1.41CFM (71PSI) Spindle Accuracy Within 1 m Bearing Load Capacity Radial Less than 6N (71PSI) Hose Diameter : Air Intake Bearing 6.0 mm (O.D.) Standard Size Collet (CHK-3.175) 1/8" Useable Max. Diameter of Grindstone 0.16" Outside Diameter 1.57"( 40 mm) Rotating Direction FWD. (CW) Air bearing spindles require clean dry air for proper operation. Never rotate the spindle, change cutting tools or collet without supplying clean, dry air to the bearing surfaces. Always supply clean, dry air to the bearing surfaces even when the spindle is not being rotated. Do not start work process until after stable rotation has been established and verified. Nsk Nakanishi of Japan is one of the largest manufacturers of industrial tools and machinery in the world. We are proud to be one of the key distributors of Nsk Nakanishi in the USA. We can deliver your orders to you anywhere in the world in a fast and easy fashion. We provide quality precision with competitive pricing and your satisfaction is guaranteed. Could not find what you are looking for ? Please email us, we will be happy to assist you. (Nsk nakanishi air bearing spindle abs-1600 1.57" was posted and is owned by: Barbara Mckee) |
