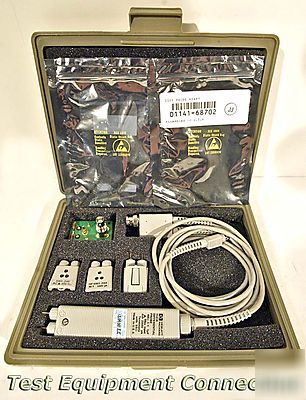

* 200 V (dc + peak ac) maximum allowable input without attenuators * Remote control input coupling and offset The Agilent 1141A is a 1X FET differential probe with 200 MHz bandwidth and 3000:1 CMRR (Common Mode Rejection Ratio) at 1 MHz. The probe has an input resistance of 1 Megohm and low input capacitance of 7 pF, to minimize circuit loading. The Agilent 1141A 200 MHz Differential Probe must be used with the Agilent 1142A Probe Control and Power Module. It can be connected to any instrument with 50 inputs. An external 50 termination can also be used with high impedance inputs. (Agilent hp 1141A differential probe, 200MHZ was posted and is owned by: Marjorie Cummings) |
