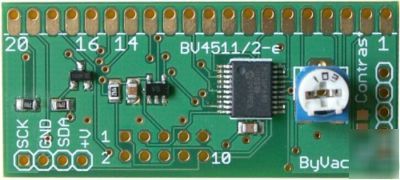

Serial VT100 to 128x64 LCD Graphics Controller Board This is the controller board as fitted to the BV4511 Graphic displays. It is designed to control that display which is based on the KS0108B graphics controller. The firmware can either be loaded with an I2C to Graphics translation or VT100 (serial) to graphics translation. This item is the the VT100 version. To see if this will match your display see this datasheet. PLEASE NOTE THIS TYPE OF DISPLAY VARIES CHECK THAT THE CONTROLLER PIN OUTS MATCH YOUR DISPLAY BEFORE PURCHASE. ** NOTE that this is a serial device, the VT100 simply refers to the command set for clearing the screen and drawing lines etc. ** 1. A serial interface and command recognition for VT100 commands 3. Graphics drawing facilities including lines, boxes and circles 4. Two text font character sets, bold and normal with display fittedThe same board with the display already fitted, this is available in Blue, White and Green. USB to serial conversionUSB to Serial convertor, This is plug compatible with the VT100 interface and provides the required handshaking (Serial lcd 128 x 64 graphic controller for KS0108B was posted and is owned by: Adeline Irwin) |
