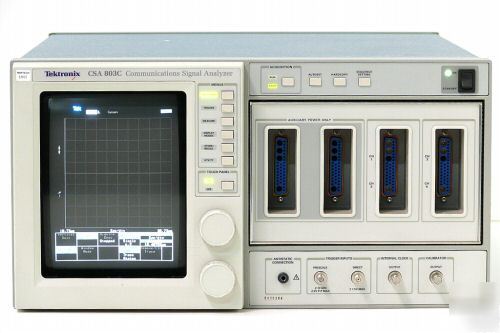

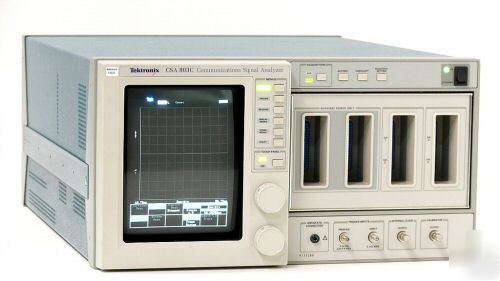

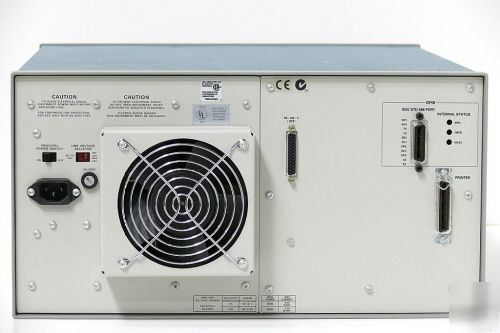

Tektronix CSA803C 50 GHz 4 Slot Sampling Oscilloscope Mainframe * DC to 50 GHz with up to 12.5 GHz Trigger Bandwidth * Design and Evaluation of Datacomm/Telecomm Components, Transceiver Subassemblies, and Transmission Systems * Fully Automatic Jitter, Noise, and Extinction Ratio Measurements * Normal, Infinite, Variable Persistence, and Color Graded Display Modes * Compatible with Optional O/E Converters * Automatic Measurements on Eye-diagrams * Time and Voltage Histograms * Automated ITU/ANSI Mask Testing with 47 Predefined Standard Masks * Digital Communications Analysis Solutions * Specifically designed for communications applications, the CSA 803C Communications Signal Analyzer is the ideal tool for design and evaluation of datacomm/telecomm components, transceiver subassemblies, and transmission systems. The CSA 803C oscilloscope generates measurement results, not just raw data, with time and voltage histograms, mask testing, and statistical pulse parameter measurements. It provides a communications-tailored measurement set that includes jitter, noise, duty cycle, overshoot, undershoot, extinction ratio and amplitude measurements. In addition, mask testing of SDH/SONET, Fiber Channel, and other standards simplifies compliance testing. A full color display helps you to discriminate waveform details. A color-graded display mode adds a third dimension - sample density - to your signal acquisitions and analysis. Color hardcopy capabilities allow you to accurately document your measurement results. The modularity of the instrument lets you choose the right bandwidth sampling head for your application, including the 2.5 GHz high impedance (100 k Ohm), low capacitance (0.475 pF) SD-14 up to 50 GHz with the SD-32. High bandwidth probes are also available for constructing a total acquisition and measurement solution. Superior Triggering Capabilities In addition to its full-function DC-coupled 4.0 GHz trigger (typical), the CSA 803C offers a built-in, AC-coupled 12.5 GHz (typical) prescaler trigger for direct triggering on high-speed data at bit rates such as 9.953 GB/S OC192/STM64. Note: requires Plug Ins, not offered in this sale Accessories included: User's Guide, Programmer Manual, Serrvice Guide, US type power cord More about the instrument: Serial number: B030125. As you can see in the pictures, it is in good condition with few signs of wear and tear. All photos on this page are of the actual item offered here. Guaranteed to be clean and operational, with 14-day right of return (Tektronix CSA803C sampling oscilloscope mainframe was posted and is owned by: Nadia Adams) |
Nadia.adams@chicagopartsnetwork.com (Nadia Adams) for more information.
