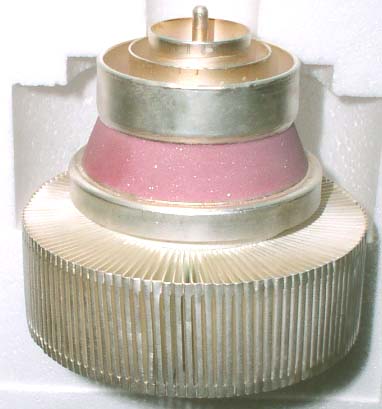

The GS-23B Coaxial power tetrode generates and amplifies power at up to 1000 MHz in RF equipment. P out>1500W up 1000 MHz. See American sale price for 4CX1600U-S/GS-23B Svetlana $575 :http:// /tubetran.html And this exclusive tube is worthy this price. Cathode: indirectly heated, oxide-coated.Envelope: metal-ceramic. Cooling: forced air. Height: at most 120 mm(4,7"). Diameter: at most 90 mm(3,5"). Mass: at most 1.1 kg (2,51 Lbs). Heater voltage, V 6.3 Heater current, A 5.3-6.1 Mutual conductance (at anode voltage 1.25 kV, grid 2 voltage 400 V, anode current 0.9 A), mA/ V 40-70 Power gain (at anode voltage 2.1 kV, grid 2 voltage 400 V, anode current 1 A, heater voltage 5.7 V), at least 8 Cutoff voltage (at anode voltage 1.25 kV, grid 2 voltage 400 V, anode current 10 mA), V, at most 65 Interelectrode capacitance, pF: input 28-38 output 9.5-13.5 Cathode heating time, s, at most 210 Output power (at anode voltage 2.1 kV Anode voltage, kV: DC voltage with tube cut off 3.0 peak value 3.5 Negative grid 1 voltage (DC), V 150 Cathode current (r. m. s. value), A 1.9 Dissipation, W: anode 1600W grid2 12W grid1 1.5W Temperature at anode, stem and seals,°C 200 Grid 1 voltage, V: maximum 0 minimum -100 Grid 2 current, mA: maximum 10 minimum -10 Grid 1 current, mA: maximum 40 minimum 0 Maximum drive power, W 12 Minimum oscillator output power, W 112.5 Maximum temperature at envelope and leads, °C 200 This sale is for ONE Brand NEW GS-23B Svetlana Tube Dispatching message to seller please don't select "Hide my email address". It complicates our answer via e-mail. Go QRO! Because life is too short for QRP... (New gs-23B svetlana coaxial power tetrode. brand was posted and is owned by: Charlotte Conley) |
charlotte_conley@chicagopartsnetwork.com (Charlotte Conley) for more information.
