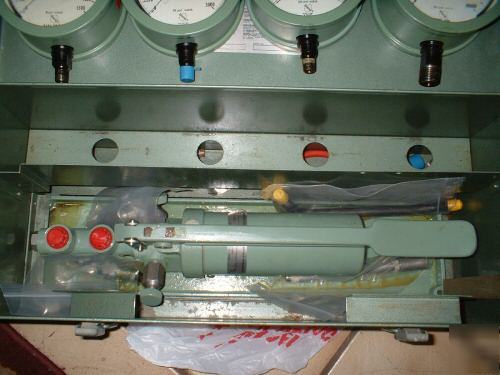

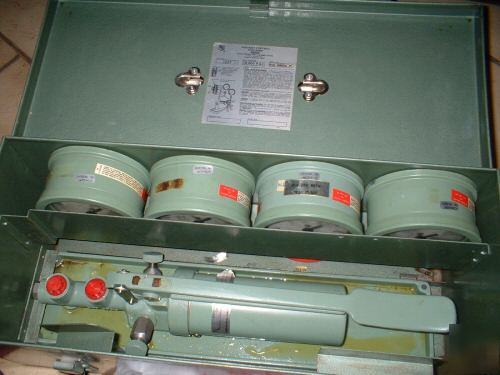

Ashcroft® Types 1327D and 1327CM are designed to be field portable pressure generation and test systems. A single carrying case holds the pump used to generate pressure as well as the gauges selected as the test standard. Both units include an Ashcroft two-stage hydraulic pressure pump. A built-in shuttle valve allows for rapid pressure increase at low pressures. The rate of increase per pump cycle can be reduced at higher pressures in order to minimize resistance. This is accomplished by simply repositioning the two-position shuttle valve. With the shuttle valve in the high-pressure position, increasing pressure even when near 10,000 psi can be accomplished quickly and easily. Final adjustment is accomplished through the use of an integral vernier-adjustment knob. The Ashcroft Type 1327CM is a precision gauge comparator which is provided with 6-inch Ashcroft ±0.1% F.S. accuracy Type A4A gauges. The gauges provided include temperature compensation which maintains the ±0.1% F.S. accuracy over an operating range of –25°F to +125°F. Available ranges include 30, 100, 500, 1000, 5000 and 10,000 psi. The Ashcroft 1327D is available with between one and four Ashcroft gauges covering the operating range of 0 through 10,000 psi. Metric range models are also available. The 1327DG is provided with 4.5" Ashcroft Type 1082 test gauges. These gauges provide an accuracy of ±0.25% F.S. The Ashcroft test gauges include temperature compensation and have a maximum thermal error of 0.005% F.S. per degree F. Ashcroft Types 1327CM and 1327D are ideally suited for use as in-field pressure standards. Both come with temperature-compensated gauges, further enhancing their field worthiness. A single carrying case holds everything needed to take full advantage of the capabilities of the test set. psi and metric ranges are available for either system. Both systems are traceable to NIST with the 1327CM provided with calibration certificates for each gauge selected. * Operating Pressure: 0-10,000 psi (maximum) (0-70,000 kPa) * Standard: SAE 20 weight automotive or machine oil * Optional: Phosphate-based or glycol fluids; Distilled water for oxygen service * Optional: Ethylene Propylene (DH Series) * Reservoir Volume: Approximately 1.5 pints (0.7 liter) * Gauge Type: Ashcroft 4.5" Type 1082 gauges with temperature compensation * Special "CD-4" Certification package available (see Price Sheet TE/PS-1) * Gauge Type: Ashcroft 6" Type A4A with temperature compensation * Temperature Compensation: –25°F to +125°F (will maintain ±0.1% F.S. accuracy) (Ashcroft test pump 1327BG w/ all gauges accessories was posted and is owned by: Yvette Mcfarland) |
