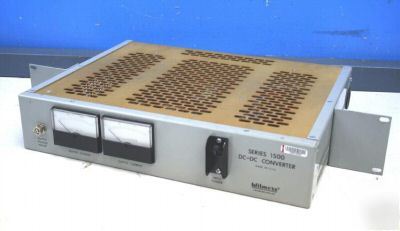

Wilmore Electronics Co. Inc. Series 1500 24 Volt DC-DC Converter (110906609011) This does not mean that the unit doesn’t work, only that we have not tested or checked it out. This may also mean that we are not knowledgeable in that specific item. Please call Brent Toll Free at 1-866-MHZ-ELEC (1-(***)-649-3532) if you have questions between the hours of 9:00 AM and 4:00 PM Monday thru Friday Pacific Time. The Item may vary from picture as manufacture may change model appearance. All information, including description, specifications and features are from a manufacturers data sheet or manual and are subject to change without notice. Meaning that all information included in the description, specifications and features What you see is what you get! If it doesn’t show it you probably won’t get it! I would like to take the time to thank From the bottom of my heart, thank you very much. You will never truly know how much it means to me. Wilmore Electronics Co. Inc. Series 1500 24 Volt DC-DC Converter * Model Number: 1502-24-48-8-M3 * Retail Price: $835.00 3 to 4 Weeks Lead Time * Height 3.45†(2 Rack Spaces) * Regulated, Adjustable Output Voltage * -30° Celsius to +60° Celsius Temperature Range * Series 1500 DC-to-DC converters provide a well-regulated dc output voltage from station batteries or other widely fluctuating dc sources. This output is galvanically isolated from the source and chassis and, therefore, may be connected either as a positive or a negative output. Applications include powering radio transceivers, telecommunications equipment, supervisory control systems and other critical electronic loads. * Designed for relay rack mounting, these state-of-the-art converters achieve superior electrical performance in a low profile enclosure. Conservatively rated and very efficient, Series 1500 converters will operate continuously at any load within their rating over a wide ambient temperature range with simple convection cooling. Exceptionally effective noise suppression and filtering allow these converters to be used in many applications considered too noise-sensitive for other transistor-switching power converters. Standard options let users adapt converters to specific system requirements, including paralleling for redundancy and for additional power. * Eight 24-volt input versions are available with different combinations of dc output voltage and output power. * Input Voltage: 20 VDC to 29 VDC (24 VDC nominal) * Output Voltage and Current: The nominal output voltage, the adjustable output voltage range and output current for standard models * Output Voltage Regulation: Versus line: ±0.1%; Versus load: ±0.5% * Output Voltage Ripple and Noise: 3 millivolts rms (typical); 30 millivolts peak-to-peak (typical) * Isolation and Grounding: Mutual electrical isolation is provided between the input circuit, the output circuit and chassis ground. * Protection: Protection against overloads, short-circuits and output over-voltages is provided electronically. Recovery to normal operating conditions is automatic upon removal of the overload or short-circuit fault. Following an over-voltage shutdown, input power to the converter must be removed and reapplied to resume converter operation. Protection against accidental reversal of the dc input-voltage polarity during installation is provided by a shunt diode working in conjunction with the front-panel circuit breaker. * Ambient Temperature Range: Operating: -30ºC to +60ºC (convection cooling); Storage: -40ºC to +95ºC * Efficiency: The efficiency reaches 80% at approximately 15% of full load and remains above 80% for most of the load range. The no-load input current is approximately 200 milliamperes. Heat dissipation is approximately 340 BTU/hour for 400-watt models and 170 BTU/hour for 200-watt models. * Front-Panel Controls and Indicators: A combination circuit breaker and ON/OFF switch is provided for input power. A potentiometer shaft with locking nut is provided to adjust the output voltage level. An optional voltmeter and ammeter display the dc output. * Output voltmeter and output ammeter * Output series diode for parallel-redundant operation of multiple Converters * Auxiliary Form C contacts for remote indication of improper output (converter fail) * Balanced load sharing between converters being paralleled for additional power * Series 1500 converters are identified by four numbers. In sequence, these give the basic model number (1501 for plain front panel, 1502 for output meter option), the nominal input voltage, the nominal output voltage and the maximum load current. Standard options other than meters are specified by an additional suffix: M1 designates paralleling diode plus auxiliary contacts, M2 designates load sharing and M3 combines paralleling diode, auxiliary contacts and load sharing. For example, Model 1502-24-13-30-M3 is a 24-volt to 13-volt converter with a 30-ampere maximum load rating. It is provided with output meters, paralleling diode, auxiliary contacts and load sharing capability. (Wilmore series 1500 24V dc-dc converter 1502-24-48-8-M3 was posted and is owned by: Jeanette Cole) |
jeanette_cole@chicagopartsnetwork.com (Jeanette Cole) for more information.
