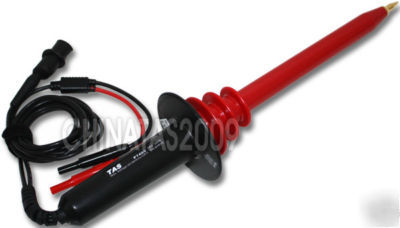

MAX. Voltage : DC : 40KV, AC : 28KV, (50/60Hz only) CAT II. DC: 1% to 20KV. 2% to 40KV. SPECIFICATIONS ( 20 5 , RH < 80% ) Before taking any measurements, first connect the alligator clip of this probe to earth ground and make sure connection is electrically good. AC : - 5 % to - 10 % ( 1 ~ 28KV ; 50 / 60Hz ) Temperature Cofficient: 200ppm / Maximum loading Current: 40 A ( at 40KV DC ) Maximum loading power: 1.6 watt Operating temperature:0 ~ + 50 Storage temperature:- 20 ~ + 70 Ground Lead length:90cm ( 3ft ) Output cable length:100cm ( 3.3ft ) Remark:For 10M input impedance DMM ( Accuracy < 0.5 % ) only. (Tas P7400 high voltage probe(dc:40KV,ac:28KV) was posted and is owned by: Seth Potts) |
