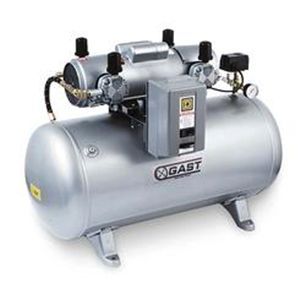

Pressure Switch, Manual Drain, Pressure Safety Valve, Pressure Gauge and Globe Valve * Tank-Mounted Oilless Air Compressors * Unique reservoir can provide a blast of high pressure. * Tank dampens pulsation from the reciprocating compressor. All Gast models except Gast DOA-P710T-AA incorporate a Gast piston compressor pump listed below. Pressure switch setting: 70 psi-On/90 psi-Off. Gast DOA-P710T-AA has 30 psi-On/50 psi-Off. Gray finish. * Central system provides air to multiple locations * Field-adjustable pressure switch * 1/3 to 1 1/2 HP Compressors * Include ASME coded tank (except Gast DOA-P710T-AA, Gast 1HAB-11T-M100X, and Gast 1LAA-11T-M100X), pressure switch, manual drain, pressure safety valve (ASME), pressure gauge, and globe valve. Gast 7HDD-11TA-M750X has magnetic starter. Gast 5HCD-101T-M550NGX is CSA certified (LR37697). Gast 5HCD-100TA-M550X is factory wired for 230V, may be converted to 115V. Tank Mounted Air Compressor, HP Rating 1 1/2 HP, Free Air Flow @ Maximum Pressure 5.75 CFM, Free Air Flow @ 90 psi 5.25 CFM, Voltage Rating 230 VAC, Current Rating 10.8 Amps, Tank Capacity 30 Gallons, Tank Type Horizontal, Gast Equivalent 7HDD-11TA-M750X, Tank (ASME Code), Pump Stock Number Gast 7HDD-10-M750X, Height 29 Inches, Length 38 Inches, Width 17 Inches, NPT Outlet (F) 3/8 Inch (Gast 30 gallons shop air compressor M750X (tank mounted was posted and is owned by: Shari Chapman) |
