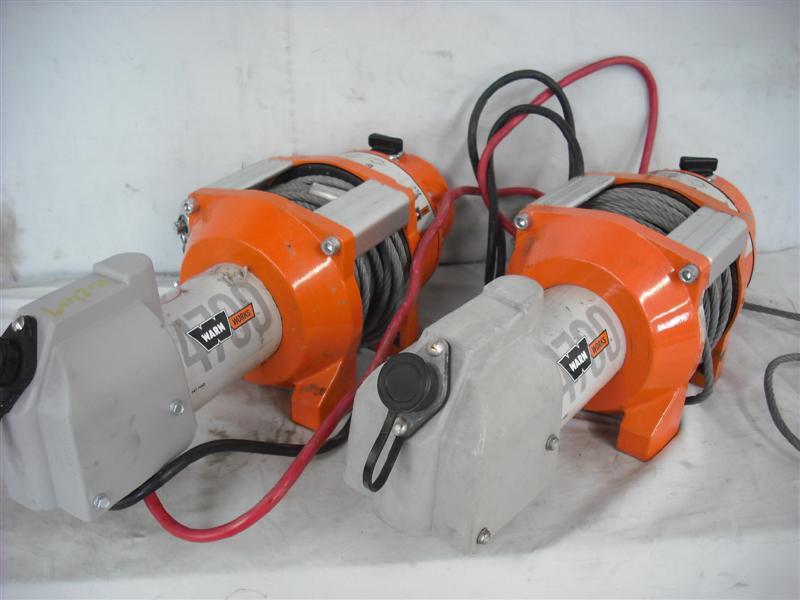

*PAIR* of WARN Works 12V DC Powered Winches 4700LB Cap Make work even easier with a higher capacity winch. The WARN Works 4700 takes the 3-stage planetary gear train and puts it to work with a 1.9 hp permanent magnet motor. The brake is a mechanical and dynamic system that holds the full rated load. The 12ft. all-weather remote control plugs into an industrial contactor control pack. The wires to the motor and contactor are protected by a plastic housing. * Gear Train: 3-stage planetary gears * Clutch: Lever actuated sliding ring gear * Braking: Dynamic and mechanical * Switching Method: Handheld remote control * Rope Size L x dia. (ft. x in.): 60 x 1/4 * Battery Leads: Two 6in. x 6-gauge cable * Mounting Bolt Pattern L x W (in.): 4 1/2 x 4 3/32, 4-hole * Dimensions L x W x H (in.): 17 11/16 x 6 9/32 x 6 1/2 * Highest capacity DC-powered winch * Power Requirements: 12V DC (300 Amp minimum) * Unit is not rated for lifting * Drum Dimensions: 2.5in. x 3in. (*pair* of warn works 12V dc powered winches 4700LB cap was posted and is owned by: Matthew Bean) |
matthew_bean@chicagopartsnetwork.com (Matthew Bean) for more information.
