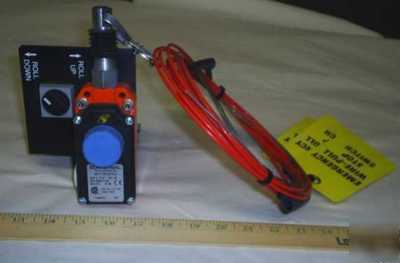

This is a brand new never used Roll Up / Roll Down Switch with a SCHMEARSAL Pull-Wire Emergency Stop Switch. The switches are mounted on a black painted heavy duty aluminum 90 degree L-bracket measuring 4" x 4" and includes 2 adjustable mounting slots with stainless steel bolts. The Schmearsal switch has the following features: To EN ISO 13850 / IEC 60947-5-5; Metal Enclosure; 2 Contacts; Small Body; 2 Cable Entries M20 x 1.5; 2 Various Spring Force Variants (actuating forces); 25 ft Cable Wire W/Orange Jacket; Reset by Push Button; Twisting of Towing Eye Not Possible; Includes Optional Position Indicator; External Watertight Collar; Wire Pull and Breakage Function. TECHNICAL DATA: Standards - IEC/EN 60947-5-1, IEC/EN 60947-5-5, EN ISO 13850; Certificates - BIA(BG); Enclosure - Aluminum diecast, enamel finish; Cover - Thermoplastic Ultramid; Protection Class - IP 65 Push Button Reset; Contact Type - Change-over contact with double break or 2 NC contacts; Switching System - Snap Action with positive Break NC Contacts; Connection - Screw Terminals; Cable Section - Max 2.5 mm2(incl. conductor ferrules); Cable Entry - 2 x M20 x 1.5; Rated Impulse Withstand Voltage Uimp - 6 kv; Rated Insulation Voltage Ui - 400 V; Thermal Test Current Ithe - 6 A; Utilisation Category - AC-15; Rated Operating Current/Voltage Ie/Ue - 6A / 400VAC; Max. Fuse Rating - 6 A gG D-Fuse to DIN EN 60269-1; Ambient Temperature -25C ... +70C; Mechanical Life - > 1 Million Operations. (Up / down switch with schmearsal pull-wire emerg stop was posted and is owned by: Jacob Ashley) |
J.ashley@chicagopartsnetwork.com (Jacob Ashley) for more information.
