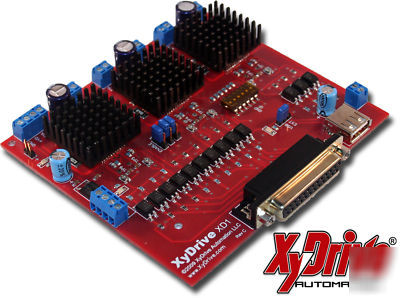

XyDrive XD1 3 Axis Bipolar Stepper Motor Driver * 2.5A Max Current Per Phase for Each Axis * Integrated Parallel Port Breakout with Full Optical Isolation * Jumper Selectable USB Power or +5VDC Screw Terminal for PC Side Logic * 10A Rated Screw Terminal Connectors * Integrated 5V Regulator for Driver Side Logic * Jumper Selectable Hardware Enable or Software Enable Via DB25 Connector The XyDrive XD1 3 axis bipolar stepper motor driver is designed to drive up to 3 stepper motors with up to 2.5A current per phase on each axis. It is capable of microstepping operation in half, 1/4 and 1/8 steps as well as full step mode operation. The XD1 has an integrated parallel port breakout board with full optical isolation to form a complete driver system. Each axis can be individually enabled using hardware or software enable. The XD1 has been tested to work with both EMC2 and Mach3 and is fully compatible with other CNC software packages as well. (3 axis stepper stepping motor driver board made in usa was posted and is owned by: Blanca Harding) |
