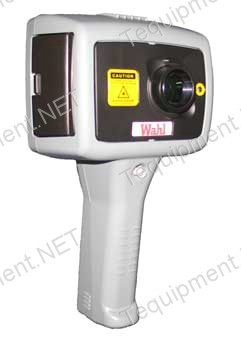

Wahl HSI1200 Hand Held Thermal Imager * Real Time Image & Temperature Measurement Display * Multiple Temperature Measurement * On/Off Soft Power Control * User Selectable Span and Level Contro * Auto Adjust Span and Level * Three Display palettes: Red-Blue, Green- Blue, or Grayscale * User Selectable Image Integration * User Selectable Emissivity Values * User Selectable Reflected Temperature * Two moveable temperature measurement cursors. * Image Capture, Time, and Date Wahl s NEW Hot Spot Finder is an innovative new camera providing real-time thermal images, image storage, analysis and report writing. Images are displayed on a large 3-1/2" color LCD in one of three display palettes: Red-Blue, Green-Blue, or Grayscale. The camera offers user selectable image integration, emissivity values, reflected temperature, Fahrenheit, Celsius, or K scales, and manual or automatic setting of temperature level and span. The HSI1200 brings the benefits of a real-time thermal image to all industrial, commercial and domestic applications. Designed for selfcontained use, the camera is the ideal tool for all users wanting temperature measurement and imaging. The high-capacity lithium battery is field replaceable, rechargeable, and allows up to 6 hours of continuous operation. Among the many common faults in the electrical systems are: Loose or corroded connections Uneven voltage distribution Failed/fatigued components With a fast start up and easy to use menu the HSI1200 is ideally suited for quick diagnostics of electrical systems where problems need to be quickly identified and fixed. Common problems in mechanical systems are: Worn/overheated bearings and drive belts Missing/damaged insulation By using the HSI1200 for comparison thermal imaging, faulty components can be quickly and easily identify long before failure becomes an expensive issue. Thermal Imaging in HVAC systems can be used to identify: Poor circulation in radiators Pipe routes in underfloor heating The performance of fan coil units Temperature distribution within the building envelope The HSI1200 is an invaluable tool for all HVAC engineers where an overall thermal image of critical heating, ventilation & air conditioning equipment is the preferred option to multiple single point temperature measurements. For refrigeration engineers the ability to get a complete thermal image rather that single point temperature measurements is invaluable. Some of the benefits are: Temperature distribution in chilled/frozen cabinets Check sealing performance around fridge doors Check insulation in chilled/freezer doors Checking for leaks in pipe work The HSI1200 is a good addition for any refrigeration engineer who can benefit from quickly identifying out of the ordinary hot and cold spots, and who needs an overall image of an area rather than a single spot temperature reading. Hand Held Imager, 20 FOV, HSI3000 Housing Up to 2000 images on supplied 256 MB SD Card (or MMC) Built in Class II Laser highlights the reference pixel User selectable 0.2 to 1.0 in steps of 0.05 with reflected ambient temperature compensation. Lithium field replaceable, rechargeable batteries with up to 6 hours continuous operation, AC Adapter included 9.05 x 4.72 x 3.54 inches (230mm x 120mm x 90mm) Hand Held & Tripod Mounting (1/4" BSW) Easy Report Software, Carrying Case, Rubber Boot, Battery, AC Adapter, User Manual & Operating Software CD, USB Cable, SD Card & Reader Report Writer Software, Desktop Charger, additional Battery, and Display Sun Shade (Wahl HSI1200 hand held thermal imager - 20 fov, HSI1200 was posted and is owned by: Claire Mathis) |
c_mathis@chicagopartsnetwork.com (Claire Mathis) for more information.
