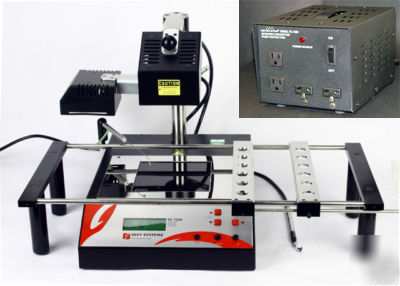

Jovy RE-7500 BGA Reflow Station SMD & BGA Reflow & Rework System Jovy RE-7500 BGA Rework System w/ Step-up Transformer 110v-220v AVRepair is the exclusive distributor for Jovy Systems in the US. Please be advised that Jovy Systems will not warrant or provide support for for any systems that are sold in the United States that have not been purchased directly, or indirectly, through AVRepair, Inc. or through our web portal, www.BGA-Rework.us - as we are the Exclusive U.S. Distributor of Jovy Systems Products, in North America. Jovy Systems Manufacturers Warranty Jovy Systems Products is a new SMD/ BGA Rework Station manufacturer in the international market. Jovy Systems Products represents the best solution for SMD/ BGA Rework for the money. Introducing its newest product, the RE-7500 BGA Rework Station. This new BGA Rework Station incorporates the latest in advanced dark medium infra red technology, using German made components, assembled in China. Operation of the Jovy RE-7500 BGA Reflow machine is a breeze compared to conventional hot air systems. There are no nozzles, making setup a snap. By the use of heat reflective tape, the user can focus the heat to desired areas, and prevent damage to sensitive or nearby components. Using the included X-Y table, and the built in laser pointer, the PCB can positioned accurately to allow reworking. The built in pre-heater is capable of delivering 600W of power. Combine that with the 300W upper heating element, and even large tasks are easy, accommodating PC boards up to 13.77 in x 17.71 in. in size. The RE-7500 removes heavy grounds and metal shielding with ease. And, when it comes to removing plastic parts, the RE-7500 does so without any damage or distortion to the plastic parts. Try that with a hot air machine! The RE-7500 also incorporates a built in fan for the cooling process, and an on-board air pick for both picking and placing components during reworking. Jovy RE-7500 Field Of Application * Medium & large scale service centers * Mobile electronics and communications systems devices * Cellular, PDA s, Handhelds, PC motherboards * LAN devices, network nodes and military equipment * Portable medical equipment * Anything and everything SMD * The RE-7500 is engineered to be lead free compatible. * Very flexible uses for most components including SMD, BGA CBGA, CCGA, CSP, QFN, MLF, PGA, Epoxy underfilled, BGA... * The system is recommended for reworking all plastic parts, including PTH Sockets, Connectors, and even metal shields. * The Jovy RE-7500 uses complete reworking processes, including pre-heating,soaking, re-flow & cooling stages are achieved for an accurate and standard reworking process. * The system uses IR with no damage to adjacent components. * With built-in precision the thermal sensor obtains instant and accurate temperature reading and monitoring. * Features a built in air-pick for safe, precision installation & removal of ICs. * The Jovy RE-7500 has a manual or automatic cooling system for a complete and standard cooling stage process for PCB's. * The system allows guaranteed safe homogeneous heat distribution. * Features custom programmable, or automatic control of the IR heaters. * The Jovy RE-7500 ensures guaranteed delivery of the heat energy at the precise time and location. * Features customizeable, programmable temperature profiles. * Allows for real time monitoring of processes using your PC or laptop. * Requires no nozzles or focusing, thereby avoiding hot and cold spots. * The Jovy RE-7500 is the optimal tool for re-balling ICs. * The system has a built in laser pointer for accurate positioning of PCB. * Smooth and precise X-Y table control is included. * Features ease of use via manual, automatic, or PC modes. * The system is scalable for future technologies and enhancements. * Optional step-up transformer 110v to 220v included. Jovy RE-7500 System Specifications The Jovy RE-7500 system can connect to your laptop or PC, which allows remote operation of all functions. This interface also incorporates profiles that you can create and edit, and then upload directly to the RE-7500. This allows for consistent results time after time. Profiles are an easy way to adjust all phases of the reflow process, including pre-heating, soaking, reflow and cooling stages 1. USB connectivity for fast control of all machine features and processes 2. Monitor PCB temperature in real time 3. Complete process bitmap graph can be archived for future reference 4. Temperature control in both F and C 5. Upload user created profiles 6. Upload and adjust system settings; sleep mode, alarm, etc 7. Upload Factory initial Settings. For more information contact us @ (***)-542-1076 * For more information contact us @ (***)-542-1076 * Warranty One year warranty from Manufacturer. Excludes normal wear and tear, abuse, misuse, impacts, lightning or power surges, acts of Satan, etc AVRepair, Inc. does not warrant the product for merchantability, or fitness for any application. Any warranties, expressed or implied, are the sole responsibility of the manufacturer. * Prices subject to change without notice, and are subject to fuel and raw commondities surchage. * IN NO EVENT, WHETHER AS A RESULT OF BREACH OF CONTRACT OR WARRANTY OR NEGLIGENCE OR OTHERSWISE, SHALL AVREPAIR, INC. BE LIABLE FOR SPECIAL, INDIRECT, INCEDNTAL OR CONSEQUENTIAL DAMAGES INCLUDING BUT NOT LIMITED TO, LOSS OF PROFITS OR REVENUE, LOSS OF USE OF PRODUCTS OR ANY OTHER EQUIPMENT, COST OF CAPITAL, COST OF SUBSTITUTE EQUIPMENT, FACILITIES OR SERVICES, DOWNTIME COSTS, OR CLAIMS OF SUCH DAMAGES EVEN IF AVREPAIR, INC. HAS BEEN INFORMED OF THE POSSIBLITY OF SUCH DAMAGE OR LOSS BY PURCHASER OR THIRD PARTY. Copyright 2006 Jovy Systems / Copyright 2008 AVRepair, Inc. (Jovy systems re-7500 bga rework station was posted and is owned by: Juan Velazquez) |
j-velazquez@chicagopartsnetwork.com (Juan Velazquez) for more information.
