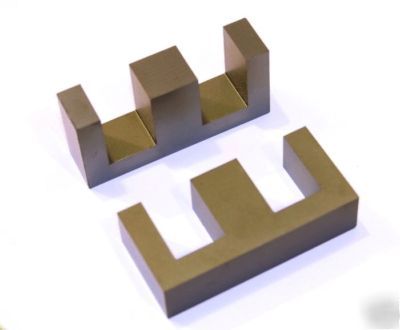

Dimensions: 80mm x 38mm x 20mm each half. Magnetic Path length: 18.43 cm iNDUCTANCE iNDEX (AL): 8910 nH/N^2 Note: Depending on construction, an EE80 transformer can produce 3-7KW max power in an SMPS application. Maximizing factors will include a full bridge topology, 100KHz+ operating frequency, and use of triple-insulated winding wire to optimize transformer performance. (E80 large transformer core, 500MT bsat power ferrite X2 was posted and is owned by: Lonnie Valenzuela) |
