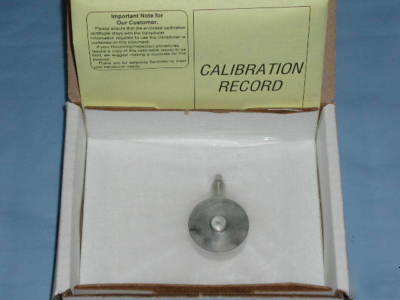

Sensotec 7500 lb. Load Cell #53/F624-01 Unused surplus part w/ manufacturer's calibration record * Model #53/F624-01, Part #060-F624-01, Order Code #AL131DT,6D * 17-4 PH Stainless Steel * Dimensions: 1.5" overall dia., 0.40 button dia., 0.63" overall height, 0.08" button height * Mounting: Three #6-32 UNC, 0.25" deep, on 1.25" B.C. * Maximum Allowable Load: 150% Full Scale * Linearity (max.): +/- 0.5% Full Scale * Hysteresis (max.): +/- 0.3% Full Scale * Non-Repeatability (max.): +/- 0.1% Full Scale * Output (tolerance): 2 mV/V (nominal) Temperature, Operating: -65 to 250 F * Temperature, Compensated: 60 to 160 F * Zero: 0.005% Full Scale/ F * Span: 0.01% Full Scale/ F * Excitation (calibration): 10 VDC * Insulation Resistance: 5000 Megohms @ 50 VDC * Bridge Resistance (tolerance): 350 Ohms (nominal) * Zero Balance (tolerance): +/- 1% of Full Scale * Shunt Calibration Data: Included * Electrical Termination: Microtec DR-4S-4H 4 pin connector (Sensotec 7500 lb. load cell #53/F624-01 was posted and is owned by: Noreen Reid) |
