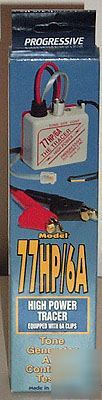

Progressive 77HP/6A Tone Generator Tracer Toner NEW Brand new in the box Progressive Electronics 77HP/6A tone generator and continuity tester with 6A clips. Here are the specs from the manufacturer: By applying a tone signal to a wire pair or single conductor, and using an inductive amplifier probe, the tone generator permits technicians to identify that conductor within a bundle, at a cross-connect point or at the remote end. These generators can be used on twisted pair wiring (telecom, datacom, etc.), single conductors, coax cables, de-energized AC wiring, etc. All 77 Series Tone Generators provide the four basic functions of tone signal, continuity testing, talk battery supply and line polarity confirmation. * Line 1 modular test lead (RJ-11) * 3-color LED (identifies AC ring voltage) * Bent nose clips with "bed-of-nails" penetrator * Power requirements; one 9V battery, nominal life 50 hrs (battery not included) * Transmitter Frequency; 900/1100Hz alternating, 900Hz constant nominal * Transmitter Power into 600 ohms; 7 dBm * Talk Battery into 600 ohms; 6.5 VDC * Voltage Protection at 600 ohms in CONT; 60 VDC (higher voltage protection in OFF/TONE modes) * High impact ABS case, 1.25 x 2.25 x 2.5", 24" test leads, 4.5 oz w/batt Includes tone generator only as shown; probe not included. (New progressive 77HP/6A tone generator tracer toner was posted and is owned by: Bradley Mills) |
