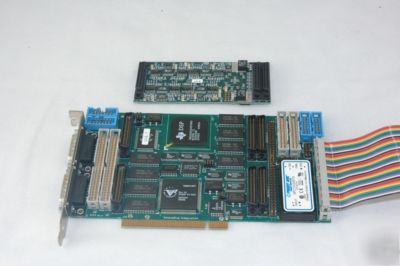

Innovative Integration M44 DSP Processor PCI Card The M44 is a PCI bus-based, flexible I/O engine featuring a floating point DSP and dual OMNIBUS module I/O expansion sites. * 60 MHz TMS320C44 Processor * Two OMNIBUS I/O Module Sites * Two 20MBytes/sec External COMM Ports * Real Time Data Acquisition This item is used, tested, 100% working. You will receive this item as pictured. No software, cables or accessories other than those pictured in the listing will be included. MANUFACTURER'S DESCRIPTION AND SPECIFICATIONS: A simple, high-speed, memory-mapped, 32-bit latch is available to support general-purpose digital I/O. Direction is software-configurable in banks of eight bits. The port may be software or externally clocked at rates to 7 MHz. The output of an AD9851 digital synthesizer is routed to both OMNIBUS sites, providing a time base spanning 0 - 25 MHz programmable in increments of .02 Hz. An onboard 82C54 augments the on-chip timer and DDS to provide three additional 16-bit counter/timer channels that are often used as analog I/O and servo time bases. These timers may be driven by either the DDS output or an onboard 1 MHz oscillator. Two OMNIBUS sites provide a flexible I/O expansion mechanism. Available modules include multichannel analog I/O at a variety of rates and resolutions, digital I/O, RS232/422 serial communication. Since OMNIBUS is an elegant, open-architecture bus, custom modules may be designed easily and cost effectively to address unique application requirements. The C44 COMM port linkages are useful to support dedicated board-to-board communications between multiple M44s and any other C4x-based DSP boards at rates to 20 MBytes/sec. (Innovative integration M44 dsp processor pci card was posted and is owned by: Roslyn Morton) |
