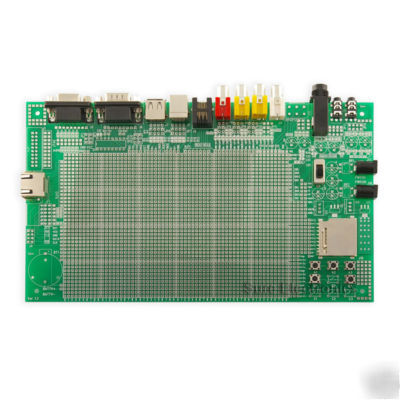

9" Db Side Prototype MCU Develop Board PCB + Connectors Brand new PCB,manufactured in August 2005 by Sure Electronics,China. Designed for Microchip PICs, Atmel AVRs, general MCS51 based and MSP430 based MCU development boards. With LQFP TQFP TSSOP or SOP to DIP converters, you can use any kind of MCU packages. The PCB will comes with a set of connectors. 2x DB-9 connectors (1x DCE and 1x DTE). 2x 1/4' (5mm) power connectors. 4x RCA connectors. Two ones are yellow, one is red and one is white. 2x 1/5'(3.5mm) headphone connectors. 1x 1/3'(6.25mm) headphone connector. 9.2" X 5.7" total dimension with a free 6" X 4" components lay out area(60*40 holes, 0.1" spacing). 1.6mm thickness fiber glass FR-4 substratum provides very high stability and intensity. Tin plated for easily soldering. Very cool "Black Oil" solder mask. 1 OZ. copper foil thickness. Can be used with most analog and digital designs. Prototype pads for JTAG,ICD,ICP connectors for ARM,DSP and other MCUs. DB-9*2 connectors for RS232 type serial communication, include a MAX232's pads. RJ45 pads for network connection. RCA connectors*4 for audio and video purpose. 1/5"(3.5mm)*2 1/3"(6.5mm) headphone connector pads. USB-A(host) & USB-B(Client) connectors. 9 key matrix for keyboard design. 1/4"(5mm)*2 power connectors for AC or DC input, pads for LT1117 or LM7805 regulators are prepared. An ALPS 16 potentiometer pads and a SD/MMC card socket are also provided. And also a CR2032 button battery socket. You can build filters, regulators, etc. very easily. All connectors pins have their own direct pass pads, (you can left those prototyped circuits spare). (9" db side prototype mcu develop board pcb + connectors was posted and is owned by: Violet Webster) |
