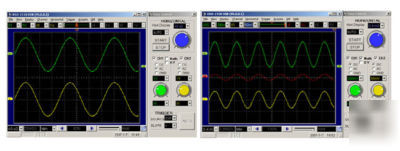

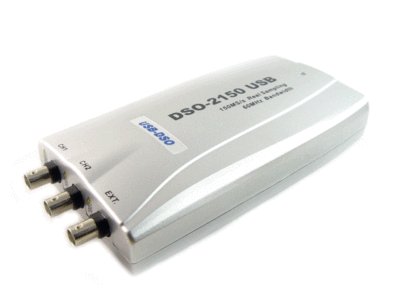

* USB 2.0 port, No Extra Power Cord Needed * Works with Laptop or Deskto * Compact size (mm-HxWxD):33x100x187mm, easy to carry. * Supported Operating Systems: Windows98/ME/2000/XP/VISTA * 60MHz bandwidth, 150MHz real-time sampling * Waveform on screen can be saved in TXT,JPG/BMP, MS Excel/Word formats. * Saved waveform files can be sent as email attachments 10mV-5V/div @ x1probe(10mV,20mV,50mV,100mV,200mV,500mV,1V,2V,5V/div1,2,5sequence) 35Vpk(DC + peak AC < 10 KHz, without external attenuation) 4ns/div - 1h/div(4ns,10ns,20ns,40ns,100ns,200ns,400ns,1us,2us,4us,10us,20us,40us,100us, 200us,400us,1ms,2ms,4ms,10ms,20ms,40ms,100ms,200ms,400ms,1s,2s,4s, 10s,20s,40s,10m,20m,40m,1h/div 1-2-4 sequence) Real time sampling:4ns/div - 400ms/div Edge trigger: Rising edge, falling edge. Vp-p, Vmax, Vnin, Vmean, Vrms, Vamp, Vhigh, Vlow, positive overshoot, negative overshoot, cycle mean, cycle rms, period, frequency, positive pulse width, Negative pulse width, rise time (10%-90%), fall time(10%-90%),positive duty cycle, negative duty cycle Time/frequency difference, voltage difference Frequency only in FFT mode Addition, Subtraction, Multiplication, Division Rectangular, Hanning, Hamming, Blackman Window Universal Serial Bus(USB2.0,1.0) No additional power required, Bus-powered directly from USB port Box Content and additional pictures * One Oscilloscope Probe kit including one pair of clip Probes plus a deluxe accessory pack. * Dead on arrival unit is eligible for a full refund when the product is returned within 7 days. Please contact us for a RMA# before you return it for refund. (150MSA/s pc based usb digital storage oscilloscope 2150 was posted and is owned by: Gilbert Garner) |
G.Garner@chicagopartsnetwork.com (Gilbert Garner) for more information.
