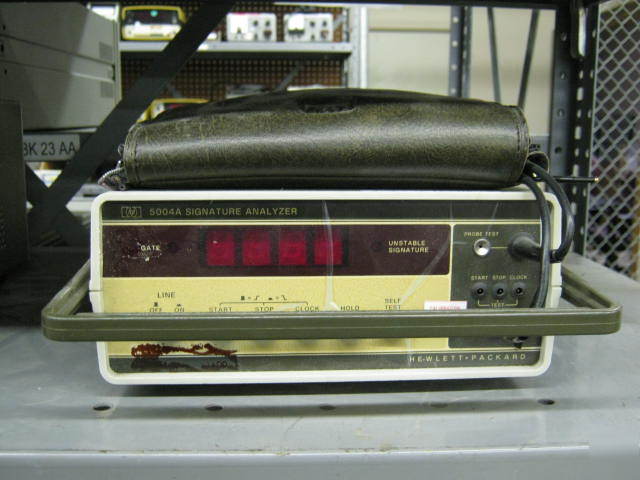

HP Agilent 5004A Signature Analyzer The 5004A Signature Analyzer is a tool for production and service troubleshooting of complex logic circuits. It recognizes and displays unique digital signatures associated with data nodes in a circuikt under test. By comparing these actual signatures to the correct ones, a technician can back-trace to a faulty node. Patented signature analysis technique for rapid testing 4-digit display 10 MHz clock speed Data probe input impedance is 50 kohms to 1.4 V, nominal, shunted by 7 pF (Hp agilent 5004A signature analyzer was posted and is owned by: Charlie Pugh) |
