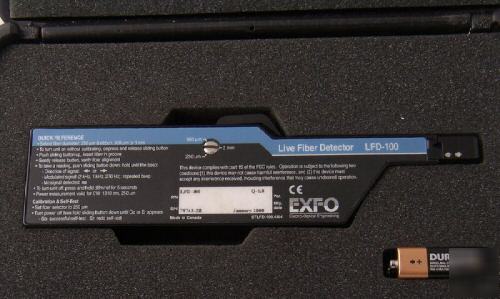

EXFO Fiber Optic Traffic Identifier and Test Set The LFD-100 detects traffic and measures signals anywhere on singlemode and multimode fibers without having to disconnect them. You can check for signal presence before re-routing or maintenance, perform continuity tests, and verify cable labeling. The LFD-100 uses a safe macrobending technique that neither disrupts traffic nor damages or overstresses the fiber. You end up with precise information reliably and efficiently. Fast, simple, and complete diagnosis When you turn the unit on, it performs a self- test after which you begin testing fibers. Clamp the LFD-100 onto a fiber; within seconds, a beep sounds, and a high- contrast, multifunction LCD provides you with a complete status report including • signal presence or absence (live or dark modulated test signal at 270 Hz, 1 kHz, or • absolute core power within 2 dBm* Detects traffic, optical tones, Adapts to three fiber sizes with Avoids disruption with its low Unique relative reading feature Get the most out of your live fiber detector by using its accurate relative measurement feature. This feature provides you with a display resolution of 0.1 dB and is perfect for optimizing connector and rotary splice alignment. The LFD-100 can effectively replace a power meter while you optimize fiber placement in a tray to reduce loss. You can also use the LFD-100 to monitor core power while making adjustments nearby. Its revolutionary, adjustable clamping mechanism and unique, non-removable head adapts to just about any fiber size and type, including color-coated fibers and yellow patchcords*. You can even clip safely onto a 12-fiber ribbon cable.** Simply set the selector to 250 µm, 900 µm, or 3 mm, and clamp. It is a one-piece unit, so you do not have to be concerned about losing test head (Exfo lfd-100 fiber optic identifier and test set was posted and is owned by: Juliet Daniels) |
juliet_daniels@chicagopartsnetwork.com (Juliet Daniels) for more information.
