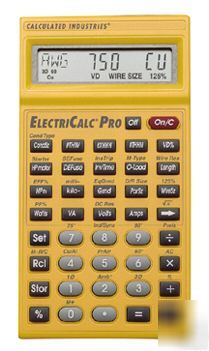

Compliant with 2005, 2002, 1999, 1996 NEC® The ElectriCalc Pro is the world’s most complete electrical calculator. It solves electrical/wiring problems quickly and accurately, calculating wire sizes, voltage drop, conduit sizing and much more in seconds, then delivers solutions conforming to current Code. It’s a complete electrical reference tool that will save time, trouble and money. Update to future Code revisions with an easy-to-install kit. Includes Armadillo Gear™ Shock Absorbing Protective Hard Cover with Soft-Grip and Tough 360° Flip-Top Cover! For Electrical Contractors, Electricians, Designers, Lighting Specialists. * Solve Electrical Problems Instantly * Carry NEC® References with You * Save Time, Money and Frustration Upgraded Calculator Features for 2005 * Enter BTU to find Kilowatts per Hour * NEC® Table Displayed when finding Wire Size Upgraded Calculator Features for 2005 * Enter BTU to find Kilowatts per Hour * Enter Kilowatts per Hour to find BTU * Parallel Resistance: Allows multiple inputs of “R†(resistance) and then computes Resistance Total * NEC® Table displayed when finding Wire Size Solve Electrical Math Problems * Copper or Aluminum Wire Sizes Calculates wire sizes per NEC® 310-16 & 310-17. Copper or aluminum, 30/10, 60°C, 75°C, 90°C insulation ratings at 100% or 125% of ampacity. Adjusts wire sizes for ambient temperatures other than 30°C and for more than three wires in a raceway * Parallel and Derated wire sizes One-button parallel and derated wire sizing. Lets you find: minimum voltage drop wire size, maximum length for any given wire size and drop percentage, actual number and percentage of volts dropped. Calculates service and equipment grounding conductor sizes per NEC® Tables 250-66 & 250-122 * Find Motor Full-Load Amps: Per NEC® works in 1Ø and 3Ø with the new expanded tables for 3Ø induction (to 500 HP) and synchronous (to 200 HP) motors per NEC® 430-148 and 430-150 * Determines Fuse and Breaker Sizes per NEC® 430-152. Built-in solutions for single and dual element fuses, instantaneous trip breakers and inverse time breakers * Sizes Overload Protection per NEC® 430-32 automatically finds NEMA® starter sizes * Conduit sizing for 12 types of conduit! Per NEC® Tables 1, 3, 4, and 5 of Chapter 9, allows sizing of all common conduits for any combination of #THW, #XHHW and #THHN wires. Plus, gives fill percentages, cross-sectional areas, remaining areas and more. * Updateable for future code editions * Works as a standard calculator * Easy-to-follow User’s Guide * Handy Pocket Reference Guide * Ergonomically designed, Armadillo Gear® 360° flip-top cover protective case 5.6†x 3.0†x 0.6†(142.8mm x 76.2mm x 15.9mm) Includes Case and Pocket Reference Guide One 3-volt (CR-2032) Long-life Battery Included 42 keys; soft-touch silicone rubber Armadillo Gear, Ergonomically designed Protective Case LCD segment; 8 digits, with annunciator-legends 0.625†x 2.5†(15.88 mm x 63.5 mm) (Electricalc pro construction calculator 5060 was posted and is owned by: Briana Gates) |
