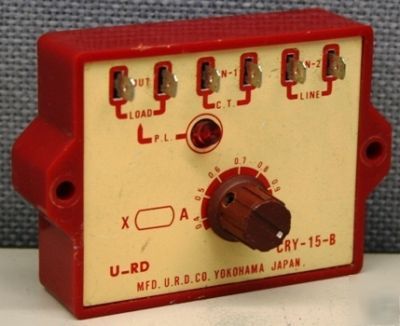

U_RD CRY-15-B External Alarm Sensor Break Alarm * Only the combination of current sensors and a wide range of 1A ~200A to cover the heater burnout alarm * Power supply voltage and current setpoint when you break down and identify himself. LED lights at work. * Alarm output, the SSR exchange for the relay output * AC100V/200V, 2 of the standard type * Power Source: AC90 ~ 120V * Current Fitness: AC1~200A (a combination for CT) * Setting Range: 40-100% (accuracy: the scale 10%) * Voltage Compensation: With 10% variation compensation * Response Time: 0.5 seconds (-10% of value) * Output Format: SSR output: AC250V/0.1A response (HOLD ON for the DC Circuit.) * Operating Temperature Limit: -20 ~ +85 * Voltage: AC1500V (1 minute) * End Child: FASUTONTABU # 187 (AMP s) * Only a combination of work current sensors, modules roughly proportional to the surface of the dial gauge can be set. * Heater and parallel connection of multiple three-phase partial disconnection in connection with the heater, a small amount of current change is required, so be careful. (rated by 5% of the corresponding changes) * Is a non-isolated power supply system circuit. CT terminal Please do not grounded in the absolute. (U_rd cry-15-b external alarm sensor break alarm was posted and is owned by: Deanne Griffin) |
