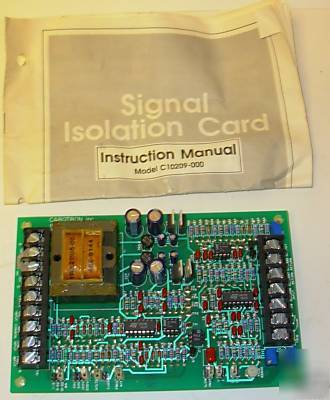

CAROTRON Signal Isolation Card The Model C10209-000 Signal Isolation Card is designed for applications in which signal conditioning is required in a single channel while electrical isolation between the input and output signals is maintained. Designed for a wide variety of input signals, Model C10209-000 can accept five types of inputs: Each input signal is conditioned by scaling circuits that can be modified via multi-turn OFFSET, BIAS and GAIN potentiometer adjustments on the Signal Isolation Card. Terminal strip connections are provided for an external Trim pot. and an external Summing Input. A single turn TRIM RANGE adjustment is supplied on the Signal Isolation Card to limit the range of the external Trim pot. The output circuit can be configured to source either a voltage or a current. Typical output ranges are 0 to +10 VDC, 0 to 20 mADC or 4 to 20 mADC. Product Link: http:// /instmanlist/SignalIsolation.pdf (Caratron signal isolation card model C10209-000 was posted and is owned by: Tammi Riddle) |
T_Riddle@chicagopartsnetwork.com (Tammi Riddle) for more information.
