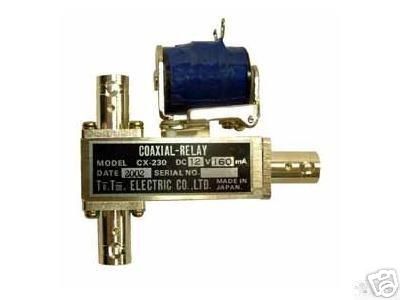

New Tohtsu CX-230 SPDT BNC type Coaxial Relay Pull in: 9 Vdc - 16.5 Vdc (12 Vdc Nominal) Current: 160 mA @ 12 Vdc at 20 degrees C Coil resistance: 75 Ohms +/-10% at 20 degrees C. Life Expectancy: 1,000,000. Operation min. Operational temperature: -50 to +70 degrees C. Cable connections: 3 BNC Type female connectors Frequency VSWR Isolation Ins.Loss IN PUT RF Power [MHz] [Max] [-dB(min)] [-dB(max)] [W] Nominal Voltage Voltage Range Resistance Ohms 12Vdc 9Vdc - 16.5Vdc 75 Ohms +/-10% at 20 degrees C. 24Vdc 18Vdc - 26.5Vdc 300 Ohms +/-10% at 20 degrees C. (New tohtsu cx-230 spdt bnc type coaxial relay was posted and is owned by: Olivia Delgado) |
