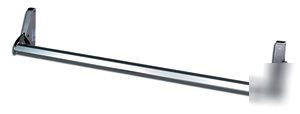

This is a Global Door Controls TH1100-ED crash bar style exit devices are suitable for narrow, medium or wide stile aluminum and hollow metal doors. It is non-handed and reversible with a contoured cross bar that will fit doors up to 42 wide and can be field sized to accommodate narrow doors. Global Door Control Warranty - 10 years * MATERIAL: Contoured anodized aluminum cross bar, stainless steel springs * LATCH CASE: 1 1/4 wide x 71/4 long with 1/2 stainless throw * BACKSET: 1 5/32 from edge of door to center line of device * STRIKE: Rim mounted roller strike with shim * DOOR THICKNESS: 1 3/4 standard * MOUNTING HEIGHT: Recommended installation at 39 13/32" from floor to center line of latch or strike assemblies * FASTENERS: Furnished with sheet metal, machine screws and shoulder mounting studs with set screws * CYLINDER: Accepts rim cylinder only * DOGGING: Inside - push up dog pin rotate with screwdriver, Outside - by key cylinder *For Left Hand Reverse Door; order RH device *For Right Hand Reverse Door; order LH device (Narrow stile exit device - bronze finish - left hand was posted and is owned by: Dina Bean) |
