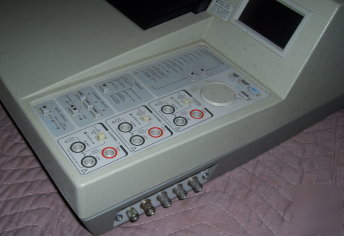

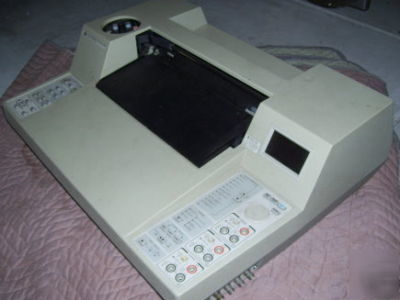

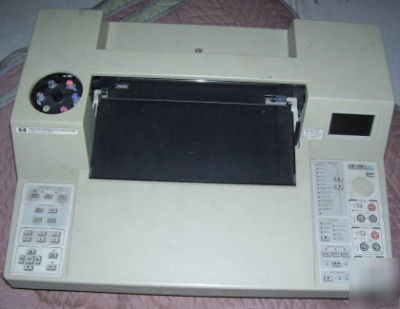

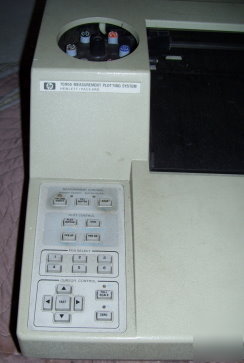

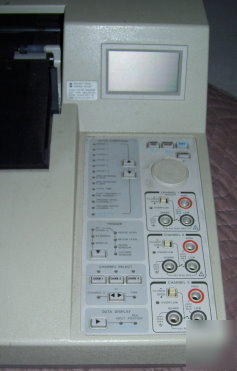

The 7090A is designed for low-frequency measurements, analysis, and documentation. It is capable of waveform recording, digital plotting, on two selectable media sizes with an 8 pen carousel. It accepts regular plotter paper and overhead transparency film media types. Input sensitivity: 5 mV to 100 V full scale Zero offset: ?2 x full scale or ?100 V max. Input Maximum: 200 Vdc or peak Time base: 1 s to 24 h (direct), 30 ms to 24 h (buffered) Slew speed: 127 cm/s direct mode Bandwidth: 3 kHz for all full scale ranges Media size capability: A / A4, B / A3 100, 120/220, 240 Vac, +5% -10%, 48-66 Hz operation Aprox Weight: 45 lb; Size: 206 mm (8.1 in)H x 575 mm (22.7 in)W x 465 mm (18.3 in)D (Hp 7090A test plotter system was posted and is owned by: Wendy Garza) |
WendyGarza@chicagopartsnetwork.com (Wendy Garza) for more information.
