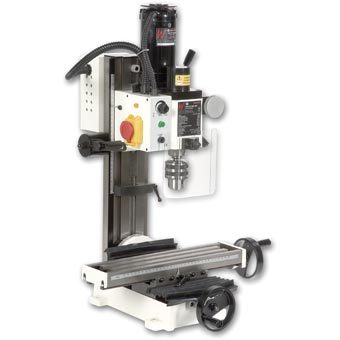

Axminster SIEG X2 Mini Mill - 240V Constructed in cast iron for vibration free running Ground and hardened slide ways with gib strip adjustment Milling head and column tilts to 45 Left & Right 350W variable speed motor with a 2 speed gearbox Fine down feed control for accurate tool height setting Coarse down feed for drilling operations Precision ground table with Tee slots for material clamping 3MT spindle fitted with a 13mm drill chuck and arbour Lead screws protected against swarf ingress 13mm drilling, 16mm end milling and 30mm face milling capacity 100 - 1,100rpm (L) / 100 - 2,500rpm (H) A fine, high precision milling machine, an ideal companion to the C2A lathe. Constructed in cast iron with a finely ground table, ground and hardened slideways and a variable speed spindle drive. The milling head and column can tilt to 45 left or right for angle drilling or slotting. The spindle drive comes from a 350W motor via a 2 speed gearbox and variable speed, giving speed ranges of 100 - 1100rpm (L) / 100 - 2500rpm (H). The headstock quill has a fine downfeed control feature for milling and a rack and pinion downfeed system for drilling. The table leadscrews are covered for protection against swarf and debris. This is a superb, small mill for the model engineer or possibly school use. (Axminster sieg X2 engineering metal mini mill - 240V was posted and is owned by: Florine Francis) |
