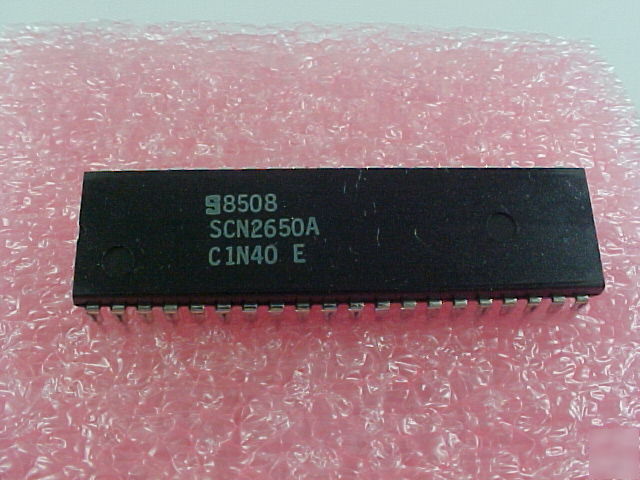

The 2650A microprocessor is the IC offered. Pinout of the 2650A microprocessor __________ __________ | \__/ | -> SENSE | 1 40 | FLAG -> <- A12 | 2 39 | Vcc <- A11 | 3 38 | CLOCK <- <- A10 | 4 37 | /PAUSE <- <- A9 | 5 36 | /OPACK <- <- A8 | 6 35 | RUN../WAIT -> <- A7 | 7 Signetics 34 | INTACK -> <- A6 | 8 2650A 33 | D0 <-> <- A5 | 9 micro- 32 | D1 <-> <- A4 | 10 processor 31 | D2 <-> <- A3 | 11 30 | D3 <-> <- A2 | 12 29 | D4 <-> <- A1 | 13 28 | D5 <-> <- A0 | 14 27 | D6 <-> -> /ADREN | 15 26 | D7 <-> -> RESET | 16 25 | /DBUSEN <- -> /INTREQ | 17 24 | OPREQ -> <- A14-D../C | 18 23 | R../W -> <- A13-E../NE | 19 22 | WRP -> <- M../IO | 20 21 | GND |________________________| California sales are taxable unless resale number is on file and verified. (2650A / 2650 plastic : microprocessor vintage was posted and is owned by: Rhea Lawson) |
r-lawson@chicagopartsnetwork.com (Rhea Lawson) for more information.
