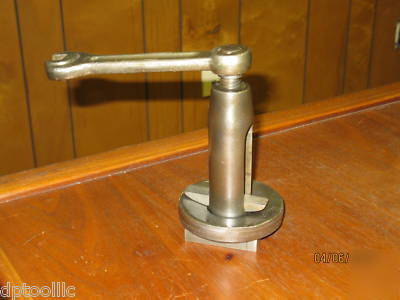

#23 Lathe Rocker Arm Tool Post Angle Ring Wedge & Wrench This is the old style Rocker Arm tool post. The tool post came with a rectangular shaped wedge and a round angle ring. It would be mounted to a lathe with a round base or an optional square base. Both the wedge and the ring were used to change the angles of the toolholders that fit into the tool post. Also included is a Williams s square open/box end tool post wrench. Size of Opening for holder: .685 x 2.500 Square Base Size: 2.255 square Square Base Thickness: .440 Tool Post Screw: 5/8-11x3-1/2 oal Tool Post Wrench: square Williams #555 Condition of Tool: Old but Good The size of tool holders that fit this tool post the best is the #2 series. The #1 series will also fit. All holders have to have shanks that are rectangular shaped, & 5/8 wide, and 1-1/8 to 1-3/8 in height. The lot of 6 parts included in this tool post is: 1. post, 2. tool post screw, 3. angle ring, 4. angle wedge, 5. square base, 6. William tool post wrench Store Category: Toolpost for Lathes (#23 lathe rocker arm tool post angle wedge & wrench was posted and is owned by: Eddie Neal) |
