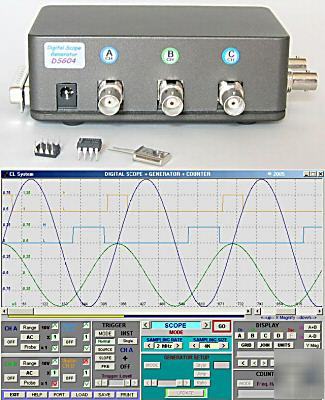

The latest in PC Multi Digital Instruments * A 5-channel 5 modes Multi-Digital Instrument. * 2 channels 12-bit PC 20M Samples/sec Digital Sampling Oscilloscope * 2 channels 1-bit 20M Samples/sec Digital Sampling Oscilloscope (for digital signals) * 1 channel 12-bit Programmable Signal / Function Generator with built-in waveforms. * Frequency and duty cycle display * Frequency counter to 100MHz 8 digit display, 1Hz resolution. * Pulse counter to 1000,000,000 counts * Pulse width measurement from 1 microsecond to 1000 seconds * Compact size: 120mm X 65mm X 40mm * Plugs into printer port (or USB port with optional USB cable) * Software can be controlled externally via simple command text file. This multi-function product is a truly versatile, almost pocketable, analog and digital instrument. The 12-bit high resolution capture is ideal for audio capture application (resolving to 500uV). It is ideal in providing digital storage capability to capture critical one-shot events, frequency spectrum analyzing functions, digital and analogue circuit fault finding or even just to generate an arbitrary/custom signal. With additional Infra red sensor and transmitter, it can record and transmit IR signals from remote controls. Support is available via manufacturer site. For more technical information and demo software please visit the manufacturer site HERE * Maximum Sampling Rate : 20 Millions Samples per second * Buffer size : Selectable 2K, 4K, 8K, 16K, 32K & 64K 12-bit data points * Analogue channels input Ranges : +-1.0V and +-10V (+-100V with X10 probes) * Display ranges: 0.025 to 2.5 volts/div (to 25 V/div with x10 probe) * Analogue input modes: Software selectable AC or DC for analog inputs. * Analogue input bandwidth: ~10MHz. Input impedance: ~ 1Mohms // 22pf * Analogue input resolution: 12-bit resolving to less than 500uV per bit * Digital channels input: DC Approximately <0.5V for logic 0 and >2 V for logic 1 * Digital input bandwidth: ~ 100MHz * Digital input impedance: ~ 20K // 22pf * Digital input resolution: 1-bit. Logic Low or High * Trigger modes: Instant or Digitally Triggered (with filter option) with +/- slopes from channel A,B,C or D. * Display : Single shot or repetitive. Pretrigger : Off, 10 or 100 sample points. * Display Functions: Freeze (On/Off), Ch(A+B) , Ch(A-B), true vertical (V) and variable time grid scale units. * Display grid: 25mV/div to 2.5V/div (or 25V/div with X10 probe) * Input connectors: All standard BNC. * Frequency and Duty Cycle display. * Type : FFT (Fast Fourier Transform) Range: 0 to 10 MHz * Frequency Range : 5Hz to 500KHz settable to 1 percent. Accuracy to within 3%. * Signal types : Sine, Triangular, Saw, Square and any Custom waves. * Adjustable duty cycle for fixed frequency square wave. * Sweep modes available on all the standard signal types. * Sweep start : 5,10,50,100,500,1000,5000,10000,50000,100000 Hz. Sweep Ratios of X2, X5 X10 and X20. * Programmable custom waves at selectable 2K, 20K, 200K, 2M & 20M Hz rates. (Can generate 10MHz square wave using 20MHz rates). * Signal Amplitude : Built-in waveforms 1V or 2V pp via BNC connector. Output Impedance : 200 Ohms. Custom value of 4095 = 2V & 0 = 0V. * Captured signals from channel A, B, C or D can be duplicated into generator, modified (cropped and amplified) and reproduced. * Custom wave loaded via simple text file, raw data or Excel CSV file * Counter Modes: Frequency or Counter. Minimum signal pulse width: ~ 10nS * Frequency count range: 1 to 100,000,000 Hz 9-digit display with 1Hz resolution * Frequency accuracy: ~ 0.002% +- 1 digit * Frequency source inputs: Analogue channels A or B or digital channels C or D * Counter range: 0 to over 1,000,000,000 counts * Counter source: Analogue channels A or B or digital channels C or D or 1MHz reference * Counter control: Ch C (+edge start -edge stop), D (-edge start +edge stop) or Manual * Pulse width measurement (+ or -): 1 us to 1000 seconds using internal 1MHz reference * Most counter functions are also available in Generator Mode. Scope Modes : SCOPE , SPECTRUM ANALYZER, SIGNAL GENERATOR, SCOPE & GENERATOR or COUNTER Scope & Generator mode can be used for analysing components(diode,capacitor...etc), verifying/fault finding analogue circuits, displaying frequency response of analog circuits such as filters (using generator sweep function), testing/fault finding digital circuits using the Generator and Counter functions together and etc.. Compact Size: 66 X 42 X 120 mm . Requires minimum Pentium PC with ECP printer port. Supports Windows 9X/Me/NT/2000/2003/XP. Supplied with software, manual (pdf file), UK power supply and one BNC to croc clips test lead. Three months warranty. Ideal for turning spare PC and laptop into a high spec digital instrument. Optional USB interface cable and software available at £39.00 (12BIT digital oscilloscope signal generator fft counter was posted and is owned by: Mitchell Christian) |
