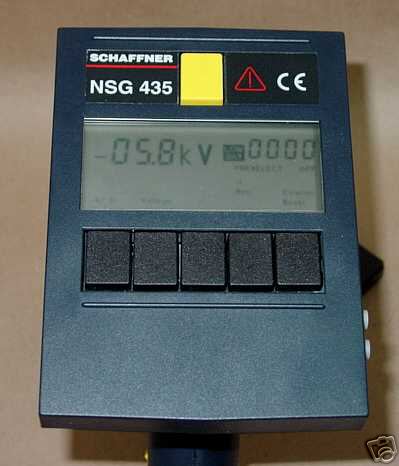

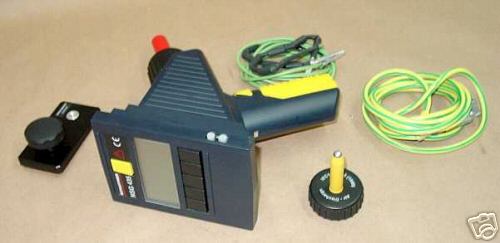

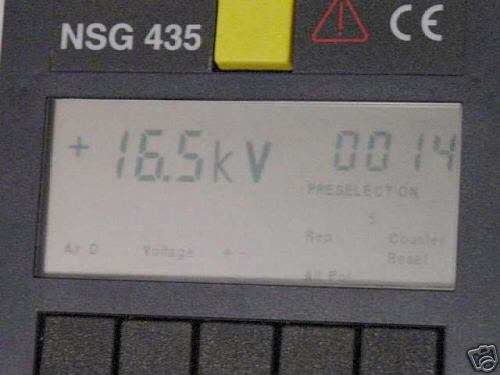

SCHAFFNER ELECTROSTATIC DISCHARGE SIMULATOR SYSTEM Made in Germany by Schaffner Instruments. Schaffner NSG435, an ESD simulator system with a Microprocessor-based control and a five-key pad that gives access to the comprehensive range of its built-in functions. The liquid crystal display shows the operating status and all userprogrammed test parameters continuously. A discharge pulse counter is incorporated and a further handy feature is the provision of a preset counter for long duration tests and remote use. The Schaffner NSG 435 has its own high voltage generator producing pulses up to 16.5kV. In addition to the preprogrammed, standard IEC pulses, the user can create custom tests, using single or repetitive discharges with selectable discharge rates and manual or automatic polarity switching. A unique feature is the detection of a real or valid discharge thereby avoiding misleading discharge counts. This is especially important during long term and remote test set up. The Schaffner NSG 435 also measures and displays the real flash over voltage during air discharge testing. The NSG 435 comes with a 150pF/330½ discharge network for tests to IEC 1000-4-2, and a range of interchangeable discharge networks is available for other standards including EN, ANSI-IEEE, ISO, etc. The discharge voltage of up to 16.5kV for air discharges and up to 9kV for contact discharges ensures a comfortable margin over and above the values required for the standard tests. Built-in IEC 1000-4-2 test settings Compact and lightweight design User programmable discharge voltage - 200V to 16.5kV Polarity - manual setting to +ve or -ve, or automatic switching Air or contact - discharge selection Discharge voltage of up to 16.5kV for air discharges and up to 9kV for contact discharges Interchangeable discharge networks and test fingers Single and repetitive discharges Discharge voltage - set by stepping up or down in 100V steps Single or repetitive discharge - at user selectable frequency Memory - a total of eight voltages (four air discharges and four contact discharges) can be programmed into the NSG435 and recalled as required Unit does not include charging unit. Min. Air Discharge Voltage: 200 volts Max. Air Discharge Voltage: 16.5 kV Min. Contact Discharge Voltage: 200 volts Max. Contact Discharge Voltage: 9 kV Discharge RC Network Values (std.): 150pF/330Ohm Case Dimensions: 5 1/2" x 17" x 14" I found this unit selling on the internet for over $10,000.00! To check out the Schaffner website, use this web address - http:// /test_systems/en/default.asp PLEASE NOTE: WE DO NOT SEND SECOND CHANCE OFFERS!!! (Schaffner esd electrostatic discharge simulator system was posted and is owned by: Florine Underwood) |
