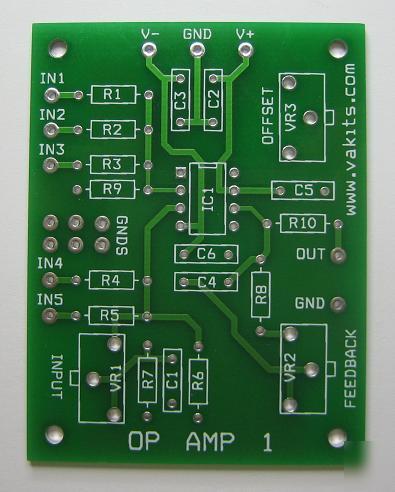

Op Amp Design PCB Kit with LF351 IC (#1660) This is the Op Amp Prototype Development PCB & LF351 IC Design Kit #1. It includes a double-sided PCB designed by us to help in your Single Op Amp circuit experiments along with a couple of the LF351 BiFET Op Amps in DIP-8 package. This PCB has been developed so that you can build a wide variety of circuits. It has provisions for Dual power supplies with bypass capacitors but you can jumper the minus power supply to Ground for single power supplies circuits. It includes a potentiometer for Offset on pins 1 & 5 with pin 8 not connected. This PCB can be used with ANY standard Op Amp such as the LM741, TL071, LF351, OP27, and many more. There are a ton of designs that you can build. Just populate the parts that you need for an incredilble array of circuits. Use this as a Prototype Development Board to design your circuits or use it in the actual project. This kit also includes different values of 1/4 Watt Leaded Resistors, NPN & PNP Transistors, Aluminum & Ceramic & Tantalum Capacitors, Signal & Power & Zener Diodes, LEDs, Trimpots, an Electret Microphone, a miniature Speaker, Pushbutton Switches, an IC Socket, and more. It also includes some Electronic Hardware so that you can interface your circuits to the outside world. With these parts, you can make numerous circuits such as active filters, pre-amps, signal conditioners, function generators, and much more. Search the web for incredible circuits to build. The Datasheets and Application Notes for the ICs and Transistors, along with hundreds of others, are located at Datasheets. We supply the parts, you supply the ingenuity. You get the following: Op Amp PCB, NightFire, FR-4, .062", Double-Sided 8-Pin, DIP, Low-Profile, Solder Tabs 1N4007, 1000V, 1 Amp, Silicon, Power Bi-Color Red & Green, Diffused, Rectangular 300 milliAmps, 250V, TR250-145U-2, Raychem 8 Ohms, .1 Watt, Miniature, Round (Op amp design pcb kit with LF351 ic (#1660) was posted and is owned by: Harry Lancaster) |
h-lancaster@chicagopartsnetwork.com (Harry Lancaster) for more information.
