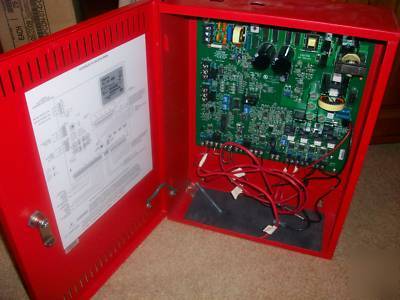

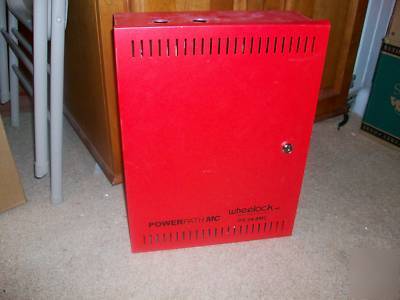

POWERPATH Series PS-24-8MC is an 8 Amp, 24VDC, filtered and regulated, supervised remote power supply/charger used for supervision and expanded power driving capability for Fire Alarm Notification Appliance Circuits. The PS-24-8MC may be connected to any 12V or 24V (FWR or DC) Fire Alarm Control Panel (FACP) by using a Notification Appliance Circuit (NAC) or a "Dry Contact". Primary applications include NAC expansion (supports ADA requirements) and auxiliary power to support system accessories. This unit provides filtered and regulated 24VDC, 8 Amp up to four (4) Class "B", two (2) Class "A", or two (2) Class "B" and one (1) Class "A" Notification Appliance Circuits. With the optional plug-in PS-4CA module the unit supports (4) Class "A" Notification Appliance Circuits. Additionally, an auxiliary power output of 3.5 Amps (disconnected upon AC power loss or an alarm condition) or 200 mAmps (constant) is provided, which can be manually reset. The PS-24-8MC also contains a battery charger capable of charging either 7 or 12 Amp/Hour (AH) of battery backup. * Approvals Include: UL Standard 864 Pending: California State Fire Marshal (CSFM), (New York City (MEA), Factory Mutual (FM), Chicago (BFP) See Approvals by model in Specification and Ordering Information * 120VAC, 50/60Hz, 5.0 Amps Operating Power in Alarm * 24VDC Battery Backup Connection * Two (2), 12V or 24V NAC Initiating Circuits (8-33V at 5mA) FWR or DC * Two (2) "Dry" Contact initiating Circuits * Accepts two (2) Class "A" or two (2) Class "B" circuit inputs * Built in battery charger for sealed lead acid or gel type batteries (Wheelock powerpath series ps-24-8MC nac power supply was posted and is owned by: Seth Mcgee) |
smcgee@chicagopartsnetwork.com (Seth Mcgee) for more information.
