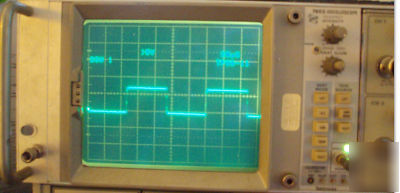

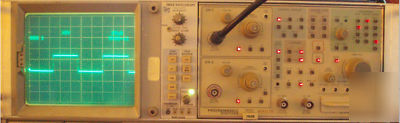

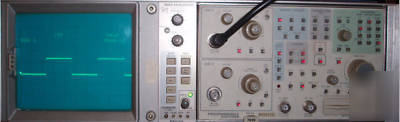

The Tektronix 7603 Oscilloscope represents the best price/performance ratio available in the 100 MHz plug-in oscilloscope market today. The CRT is large, 8 X 10 div (1.22 cm/div), and features an internal graticule with variable illumination and 15 kV accelerating potential. An optional maximum brightness CRT with a smaller 8 X 10 cm display and 18 kV potential gives you greater visual brightness and higher photographic writing speed. Adds digital storage capability to TEK 7000 series mainframes. Fully GPIB programmable. 70 MHz for repetitive signals, Sample rate: 40 MHz. Dual input channels. Six waveform storage. Enveloping and signal averaging. Digital Storage for 7000 series ainframe 70 Mhz bandwidth for repetitive Signals Two channels Simultaneous Acquisition Totally Progarmmable Storage of Six independant waveforms Enveloping and signal averging The 7D20 Programmable Digitizer Plug-In is a GPIB programmable plug-in that is compatible with all 7000 Series mainframes (including the USM 281C) except the 7104. When combined with a 7000 Series mainframe, this plug-in creates a fully programmable, digitizing oscilloscope. The unit can accurately measure the amplitude of a 50 ns wide transient event. 70MHz Bandwidth for Repetitive Signals 10MHz Single-Shot Bandwidth Dual Channel Simultaneous Acquisition. The Tektronix 7D20 is a GPIB-Programmable Digitizer plug-in for Tektronix 7000-series oscilloscope mainframes. It performs simultaneous sampling on both of its' input channels, with 70 MHz bandwidth for repetitive signals, and 10 MHz BW for single-shot events. Other features include: * Digital storage of six waveforms * Two cursors for waveform measurement functions * Complete programmability via GPIB 3. I have no knowledge of the history of the equipment. Due to the nature of used and surplus equipment no guarantees or warranties either expressed or implied are offered unless specifically noted in the description. 5. No manuals, NO STANDARD POWER CORDS, accessories, software etc are included unless pictured and noted in the description unless otherwise noted in the description. (Tektronix R7603 scope w/ 7D20 digitizer plug-in. was posted and is owned by: Stefanie Vazquez) |
