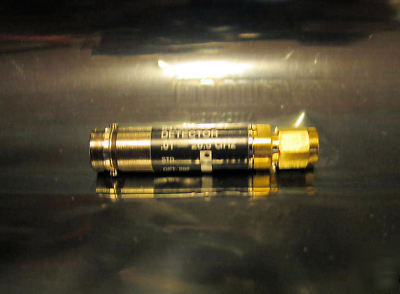

Low-Barrier Schottky Diode Detector The Agilent 8473C Low-Barrier Schottky Diode (LBSD) detector has been widely used for many years in a variety of applications including leveling and power sensing . It offers good performance and ruggedness. Frequency response: 0.3 dB to 12.4 GHz, 0.6 dB to 20 GHz, 1.5 dB from a -3.3 dB linear slope starting at 20 GHz to 26.5 GHz Maximum SWR: 1.2 to 4 GHz, 1.5 to 18 GHz, 2.2 to 26.5 GHz Low-level sensitivity: > 0.5 mV/uW to 18 GHz, > 0.18 mV/uW to 26.5 GHz Maximum operating input power: 200 mW Typical short-term maximum input power (< 1 minute): 1 W Input connector: 3.5 mm male If your not happy with your item return it and I will refund (Agilent 8473C low-barrier schottky diode detector 26.5G was posted and is owned by: Eloise Cannon) |
Eloisecannon@chicagopartsnetwork.com (Eloise Cannon) for more information.
