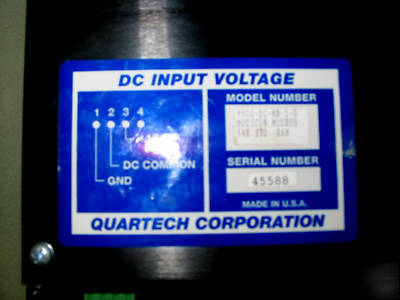

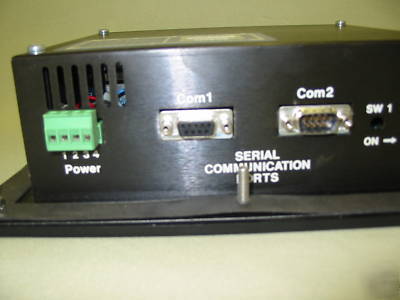

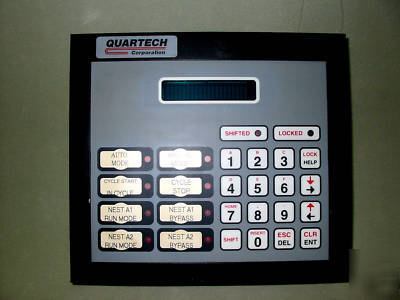

QUARTECH CORP SERIES 9900, MODEL #9900-DC-MN-1-0 SERIAL #45588 9900 Series Operator Interface The 9900 Series packages a forty character vacuum fluorescent display, eight element pushbutton station with red light emitting diodes, and a numeric keypad into one integrated unit. It is designed to communicate directly with a Programmable Logic Controller (PLC) through its programming port allowing an operator to easily view and change values in the PLC system without learning unique address and data formats. The 9900 Series is fully programmable using ScreenMaker 9000 Windows based off-line software. The control engineer can customize each screen to fit the current application. Text and data can be combined to create a user friendly interface. 64K of flash memory is available to safely store screens. * Eight user keys may be independently defined as pushbutton or selector switches. * Eight LEDs may be independently controlled by the PLC or integrated with their associated user key. * Legend cards slide safely between the polyester layers allowing the user keys to be custom labeled. * 64K of flash memory allows up to 719 screens. Each screen may include up to ten variables. * A FIFO screen stack up to 100 deep and screen logging are standard. * An RS-232 serial printer port and real time clock are standard. Clock data may be sent to PLC. * Multiple locks to prevent unauthorized access THIS OPERATOR INTERFACE WAS TAKEN OFF A PIECE OF EQUIPMENT WHEN IT BECAME OBSOLETE. IT HAS NOT DAMAGE (Operator interface, quartech series 9900 was posted and is owned by: Antonia Sanford) |
a-sanford@chicagopartsnetwork.com (Antonia Sanford) for more information.
