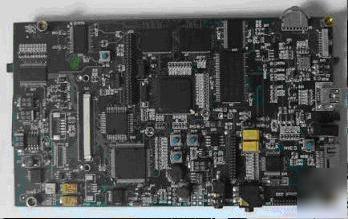

GAOPXA270 development board is based on Intels Xcale PXA270 processor. There is CPU, 128MB SDRAM, 64 MB Flash, 1 10/100M Ethernet interface, 1 MMC interface, 1 PCMCIA interface, 1 audio I/O, 1 320x240 TFT LCD interface, TOUCH, CPLD programmable, 1 JTAG interface and 1 bus. Users have the freedom to develop the board with their own applications. * CPU: Intel Xcale PXA270, 520MIPS speed, industrial level * Ethernet: 10/100Mbps self-sensing Ethernet interface * USB: supports USB1.0/2.0, USB Host interface * Audio: supports Earphone, speaker, mic * Display: on-board 3.5/TFT/320x240 * BlueTooth: 920 Kbps (4 lines) * Inferred: irDA supports sending and receiving data, send/receive distance <8m * PCMCIA: supports standard PCMCIA card * IDE: supports external IDE hard drive * CF: CF type II interface, supports Memory, I/O, IDE modes * MMC: supports SD, MMC and SDIO * CPLD: supports real time live programmable * U-BOOT supports Ethernet download, provides U-BOOT source code * Linux kernel: Linux Kernel 2.4.19 * Busybox: Busybox 1.00, provides Linux basic orders and source codes * Linux device drivers and source codes: UART/blue tooth/irDA/USB * Ethernet driver: 10/100M communication * Ramdisk provides Ramdisk files modification instruction, application software development, and application software self restarting method and TFP/yaffs protocols 1. ONE GAOPXA270DK development board 3. ONE USB cable and ONE network cable 4. ONE Disk, includes Linux driver and source code, bootloader and source code, kernel and source code, ramdisk and source code, Linux development environment, GCC instructions etc. You must have a return authorization number to return your product. Please contact Jimmie-Bullock@chicagopartsnetwork.com to obtain an authorization number, which shall be valid for 14 days after issued. This product is covered by a warranty of 12 months. You must have a return authorization number to service your product. Please contact Jimmie-Bullock@chicagopartsnetwork.com to obtain an authorization number. (GAOPXA270 development board was posted and is owned by: Jimmie Bullock) |
Jimmie-Bullock@chicagopartsnetwork.com (Jimmie Bullock) for more information.
