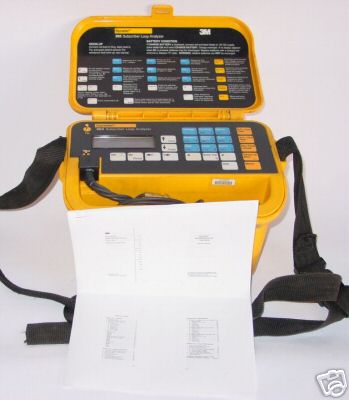

This unit is in excellent condition. There are good batteries in it and the cables are in excellent shape. This is used from a working environment. We guarantee this unit to power up and pass self calibration. The cable with the aligator clips (pictured) and the users manual is included. New batteries are installed. The Dynatel 965 subscriber loop analyzer performs all the tests needed to analyze and troubleshoot the subscriber loop, as well as cable plant in a single, portable unit. In addition, the 965 uses combinations of its test measurements in automatic functions called DC Line Test and AC Line Test, which interpret results and lead the operator toward possible solutions to complex cable problems. Specifications for 965 Subscriber Loop Analyzer Measures opens 0-100k feet, Counts loads up 0-5, voltage 0-250 VAC, 0-350 VDC, current 0-110 mA DC, Resistance 0-100 Mega o hms ohms, Noise metallic 10-50 dBrnC, Noise to ground 40-100 dBrnC, Frequency counter 20-20000 Hz, Ground resistance 0-500 ohms, Loop and CO resistance 0-5k ohms, Resistance fault locate 0-30 Megohms, Temperature sensor 0°-140°F, Noise immunity 7 Vac , Precision tones 404, 1004, 2804 Hz Tracing tone 577.5 Hz, Harmonic distortion <45 dB (up to 10th harmonic), Variable source 50 Hz to 10 kHz, operates on 5 C cell alkaline or rechargeable NiCd batteries. Typical battery life No backlight 40 hrs NiCd -120 hrs alkaline, With backlight 12 hrs NiCd- 35 hrs alkaline, Size H x W x D 7.0 x 10.5 x 7.5 , 5 ft cord, Net weight lbs.7.5, Operating temperature 0° to 140°F , Relative humidity 0-100% condensing, Operating altitude 0-15,000 ft. Please send money orders to: John Prine, 5032 Phillips Hwy, Jacksonville FL, 32207. (Dynatel 3M 965 subscriber loop analyzer was posted and is owned by: Phillip Bean) |
p-bean@chicagopartsnetwork.com (Phillip Bean) for more information.
